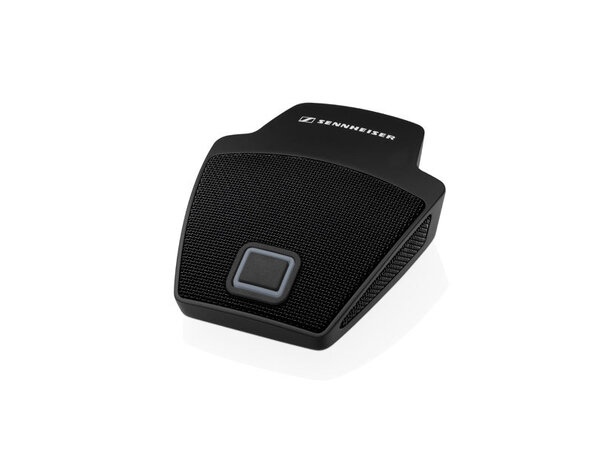

Sennheiser MEB 114-S B m/PTT Sort

Sennheiser MEB 114-S B m/PTT Sort

Varenr: 505615
4 475,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse
The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. In its –S version it additionally features a programmable microphone button (PTT, PTM, toggle ON/off, permanent on), and a bi-color LED ring for status indication. A camera or media control system can be triggered via the TTL logic out on the bottom side. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
Teknisk info

Technical Data
Colour black 505615
white 505616
nextel grey 505617
LED light ring: red / green
Dimensions 85 x 100 x 25 mm (WxDxH)
Connector clip contact, trigger signal at the logic connector: Logic in (LED control), GND, Logic out (switch signal)
Frequency response 40 Hz – 20 kHz
Max. sound pressure level 140 dB
Transducer principle pre-polarized condenser microphone
Weight 291 g
Pick-up pattern cardioid
Nominal impedance 200 O
Phantom powering P 24 - P 48
Operating temperature -10 ° … +50 °C
Equivalent noise level 29 dB (A)
Equivalent noise level weighted as per CCIR 468-3 39 dB (CCIR)
Current consumption 5.3 mA
Output voltage Logic out: igh level output voltage > 2.4 V, low level output voltage < 0.4 V
Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
Acoustics boundary layer microphone
Dynamic range 111 dB (A)
Sensitivity 10 mV/Pa

What's in the box?

  • MEB 114 Microphone
  • Quickguide
  • Cable
