Sennheiser SL 114-S DW-3 B Sort

Varenr: 506607

10 350,-

Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.

Beskrivelse

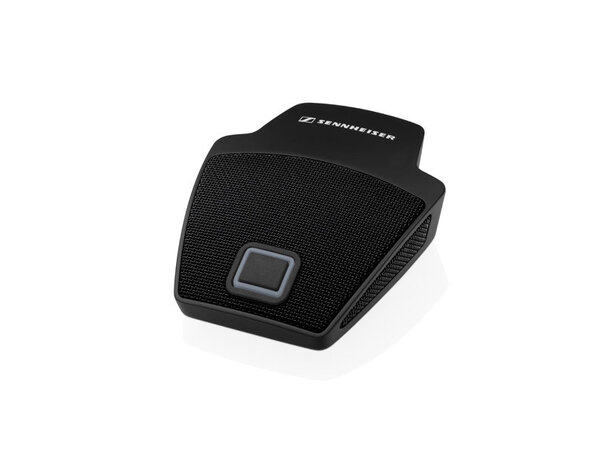

The sturdy on-table boundary layer microphone SL 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the SL 114 ensures the best speech intelligibility.

Teknisk info

Technical Data


Colour	black	505615
	white	505616
	nextel grey	505617
	LED light ring: red / green
Dimensions	85 x 100 x 25 mm (WxDxH)
Connector	clip contact, trigger signal at the logic connector: Logic in (LED control), GND, Logic out (switch signal)
Frequency response	40 Hz – 20 kHz
Max. sound pressure level	140 dB
Transducer principle	pre-polarized condenser microphone
Weight	291 g
Pick-up pattern	cardioid
Nominal impedance	200 O
Phantom powering	P 24 - P 48
Operating temperature	-10 ° … +50 °C
Equivalent noise level	29 dB (A)
Equivalent noise level weighted as per CCIR 468-3	39 dB (CCIR)
Current consumption	5.3 mA
Output voltage	Logic out: igh level output voltage > 2.4 V, low level output voltage < 0.4 V
Output voltage	Logic in: High level input voltage > 2.0 V, Low level input voltage < 0.8 V
Acoustics	boundary layer microphone
Dynamic range	111 dB (A)
Sensitivity	10 mV/Pa
