XSW-D PEDALBOARD SET

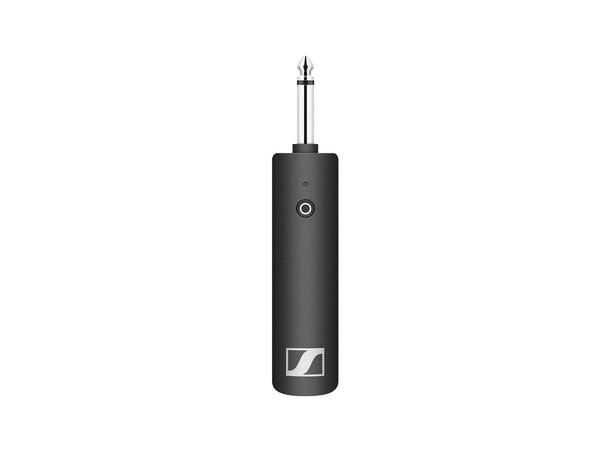

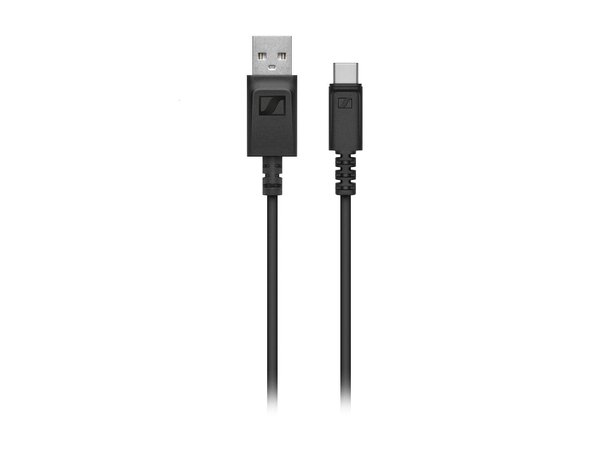

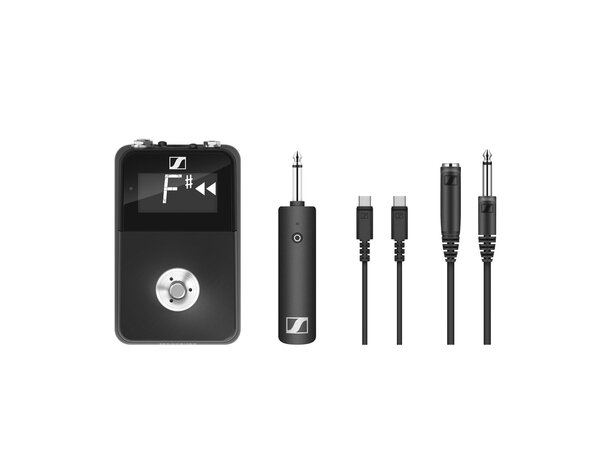

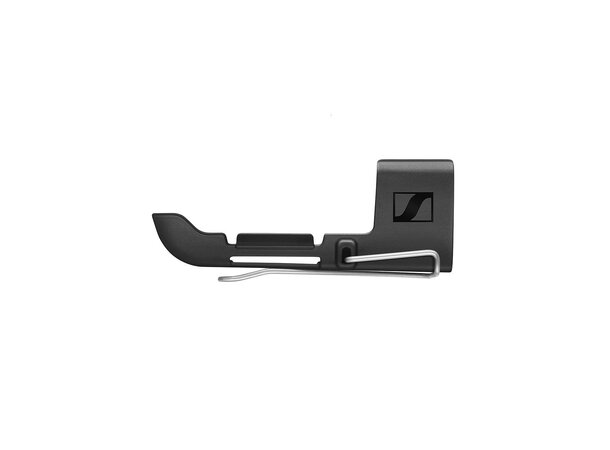

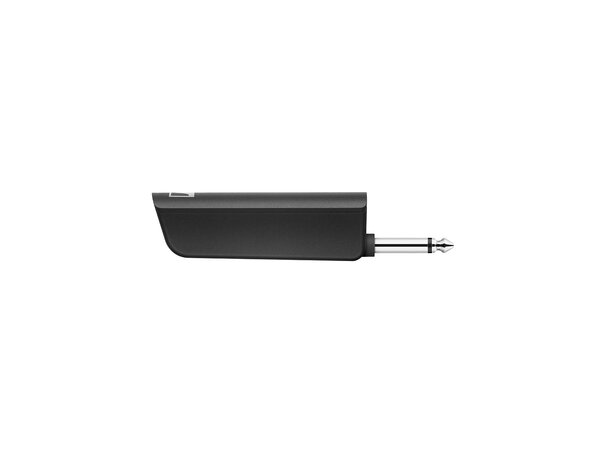

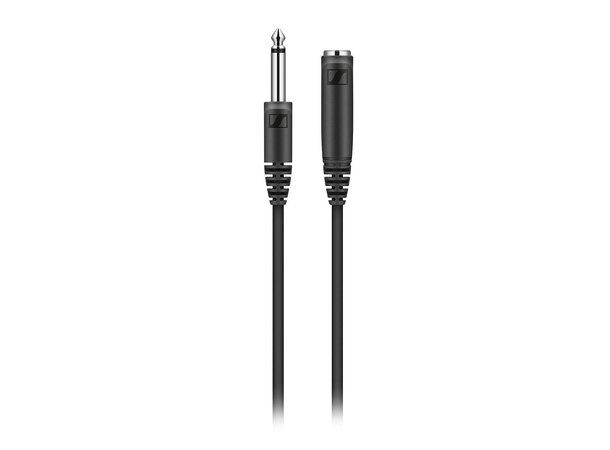

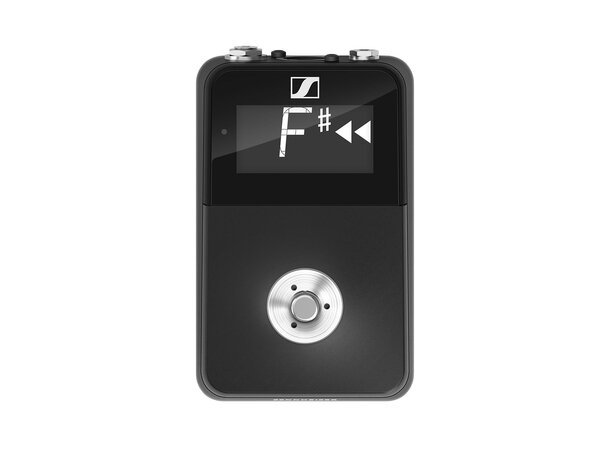

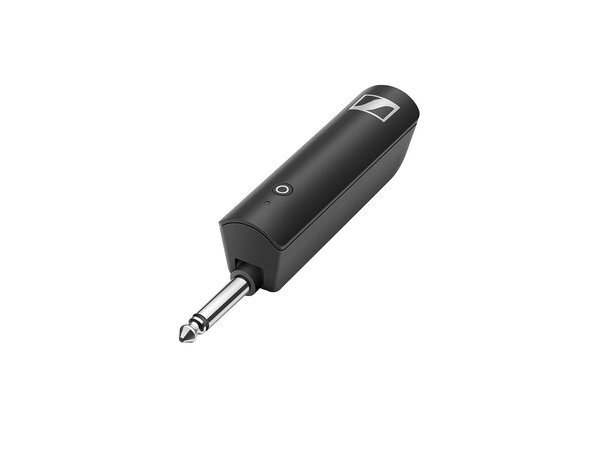

XS Wireless Digital Pedalboard Set. One-touch ease-of-use wireless audio set with XSW-D 6.3mm (1/4”) transmitter, XSW-D Pedalboard receiver, receiver power supply, extension cable 6.3mm (1/4”), belt clip and USB-C to USB-C charging cable
One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution allows you to play guitar wirelessly and still use a pedalboard, all while maintaining a reliable connection.
Key Features
One touch ease-of-use
2.4 GHz digital transmission for worldwide operation
75m range (250ft) in optimal conditions
Up to 5 hours battery life on a single charge
Switch between multiple transmitters linked to one receiver
Configure any combination of transmitters and receivers
Mute from either transmitter or receiver
- Dimensjoner
XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm
XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm
XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm
XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm
XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm
- Total harmonisk forvrengning (THD)
< 0.1 %
- Ladetid
typ. 3 h
- Lydutgang
max. 12 dBu
- Operating temperature
-10 °C to +55 °C (14 °F to 131 °F)
- Signal-til -støy-forhold
= 106 dB
- Driftstid
up to 5 h
- Modulasjon
GFSK with TDMA
- Batterispesifikasjon
Li-Ion
- Capacity
850 mAh
- Codecs
aptX® Live
- Frekvensområder
2,400 - 2,483.5MHz
- Maks. inngangspenning
typ. 5.0 V
- Transmission power
max. 10 mW
- Voltage
3.7 V
- Operating relative humidity
95 % (non-condensing)
- Latency
< 4 ms
- Temperaturområde
0 °C - 60 °C (32 °F - 140 °F)
- Frekvensrespons lyd
3.5 mm Jack/XLR: 80 - 18,000 Hz
6.3 mm Jack: 10 - 18,000 Hz
