Sennheiser XSW-D XLR presentasjonssett

Portabelt XLR presentasjonssett

Varenr: 508492
3 675,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

XSW-D PRESENTATION BASE SET

XS Wireless Digital Presentation Base Set. One-touch ease-of-use wireless audio set with XSW-D 3.5mm (1/8") transmitter, XSW-D XLR male receiver, belt clip and USB-A to USB-C charging cable


One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. This elegant solution makes wireless presentations easier than ever before while maintaining a reliable connection.

Enkel brukervennlighet

2,4 GHz digital overføring for verdensomspennende drift

75 meter rekkevidde (250 fot) under optimale forhold

Opptil 5 timers batterilevetid på en enkelt lading

Bytte mellom flere sendere koblet til en mottaker

Konfigurer hvilken som helst kombinasjon av sendere og mottakere

Demp fra enten sender eller mottaker

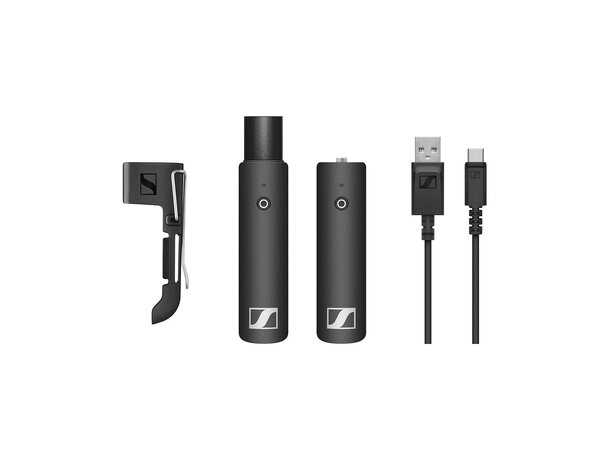

Hva er med i esken

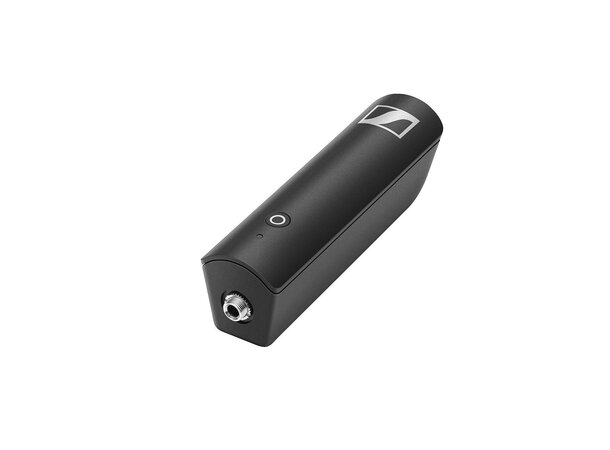

  • XSW-D 3.5mm (1/8") transmitter

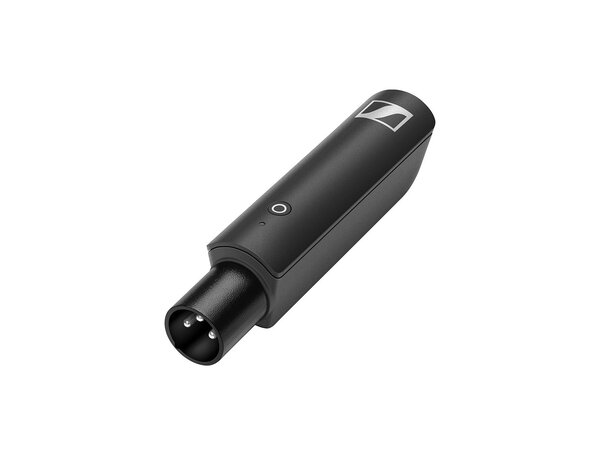

  • XSW-D XLR male receiver

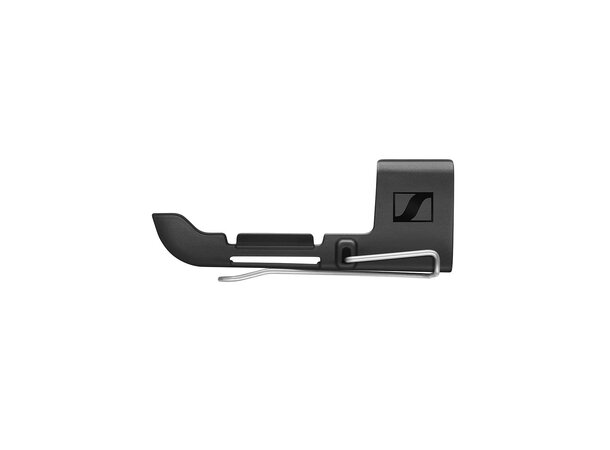

  • Belt clip

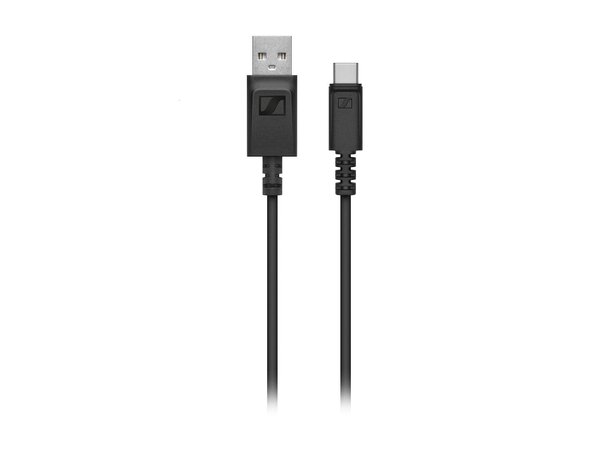

  • USB-A to USB-C charging cable
Teknisk info

Technical Data

System
Frequency response 20 to 20.000 Hz
Dynamic range > 128 dB (A)
THD, total harmonic distortion typ. < 0,1 %
Audio sampling 24 bit/48 kHz
Signal-to-noise ratio = 109 dB (A)
RF frequency range 2,400 to 2,483.5 MHz
Modulation GFSK with back channel
Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency 3.9 ms
Audio codec APT-X Live
Operating temperature – 10 °C to +55 °C
Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)

SKM D1
Frequency response 50 to 20,000 Hz
RF output power adaptive, up to 100 mW, 10 mW fix (country-specific)
Display LCD
Weight approx. 280 g incl. microphone head
Input sensitivity automatic sensitivity adjustment
Battery Specification 2 x AA size battery (1.5 V), Operating time: typ. 6 h
Accupack BA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)

EM D1
RF sensitivity <-90 dBm
RF output power Back channel 10mW/100mW (country-specific)
Audio output Mic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filter at 120 Hz
Equalizer 7-band graphic equalizer
Automatic gain control (AGC) compression/expansion with automatic make-up gain function
Display OLED
Connection XLR/¼" (6.3 mm) jack
Antenna connector 2 x Rev-SMA
Network socket RJ45
Network protocol Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply 12 V DC hollow jack
Current consumption 350 mA
Weight approx. 824 g

SK D1
RF output power adaptive up to 100mW, 10mW fix (country-specific)
Connection 3.5 mm jack socket, lockable
Weight approx. 85 g
Input sensitivity automatic sensitivity adjustment
Battery Specification 2 x AA size battery (1,5V), Operating time: typ. 6 h
Accupack BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
Microphone Frequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
Line Frequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance 1 M?

What's in the box?

  • EM-D1 rackmount receiver
  • SKM-D1 handheld transmitter
  • MZQ microphone clamp
  • NT-12 power supply
  • Transport Case
  • User Manual
