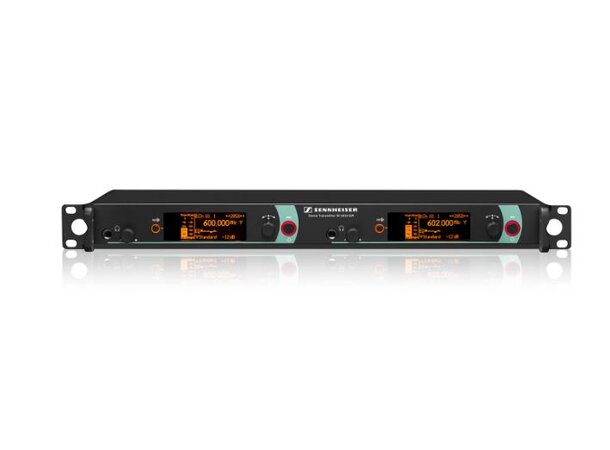

Sennheiser SR2050 IEM AW+-X  19" 1U Aw+ (470-558 Mhz)

Sennheiser SR2050 IEM AW+-X 19" 1U

Aw+ (470-558 Mhz)

Varenr: 508644
20 700,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

Aside from being designed as a twin transmitter, SR 2050 is identical to SR 2000, and like its single counterpart, it is also network compatible. In other words: Through the Ethernet connections, you can monitor and control SR 2050 from your PC using Sennheiser's Wireless Systems Manager software. You can also easily link other network-compatible components from other Sennheiser series.

Key Features
  • Rugged 19" all-metal housing with integrated power supply unit

  • Up to 3000 frequencies in up to 75 MHz switching bandwidth

  • 20 fixed frequency banks with up to 32 compatible presets

  • 6 banks each with up to 32 tunable channels

  • Frequency setting in 25 kHz steps

  • Switchable RF output power for versatile use

  • Enhanced audio frequency response in the bass range

  • Receivers can be configured from the transmitter menu

  • Can be synchronized with the receiver using infrared interface

  • Wide range of accessories for virtually any use

  • Monitoring and control using Sennheiser WSM PC software

  • User-friendly menu interface with two-color backlit graphic display (red as a warning)

  • Pilot tone transmission for interference-free operation

  • Adjustable headphone connections

  • Wide range of accessories for virtually any use



Kassen indeholder
  • 1 SR 2050 IEM transmitter
  • 3 mains cables (EU, UK, and US)
  • 2 rod antennas
  • 1 instruction manual
  • 1 supplementary frequency sheet
  • 1 supplementary RF license sheet
  • 4 device feet
Teknisk info
RF frequency range 516..... 865 MHz
Transmission/receiving frequencies 1680
Presets 32
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 25.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Antenna connector 2 BNC, 50 Ohm
Audio-XLR connector 6,3 mm
Audio output level (balanced) XLR: +18 dBu max
Audio output level (unbalanced) Jack: +12 dBu max
Dimensions (Receiver) 212 x 202 x 43 mm
Weight (Receiver) 980 g
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range max. 3,0 V eff line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
