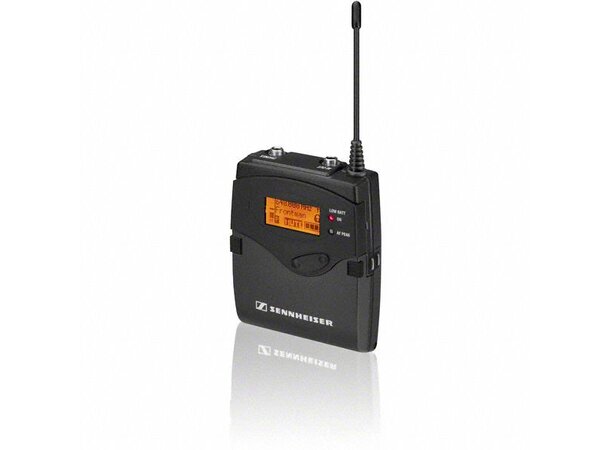

Sennheiser EK 2000 IEM AW+X Bodypack receiver - 516-558  MHz

Sennheiser EK 2000 IEM AW+X

Bodypack receiver - 516-558 MHz

Varenr: 508645
6 900,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk info
Beskrivelse

This wireless monitoring set's receiver uses adaptive-diversity technology. The earphone cable serves as a second antenna, which considerably reduces the number of drop-outs. Combined with IE 4 ear-canal phones for precise sound reproduction, EK 2000 IEM conveys an authentic acoustic pattern of live sound and allows you to monitor your own performance perfectly.

Funktioner

  • Sturdy all-metal housing

  • Up to 3000 frequencies in up to 75 MHz switching bandwidth

  • 20 fixed frequency banks with up to 32 compatible presets

  • 6 banks with up to 32 tunable channels

  • Adaptive-diversity technology for high reliability

  • Pilot tone squelch can be set in 2 dB steps for interference-free reception

  • Frequency scan feature searches for available reception frequencies

  • Wireless synchronization of receiver parameters from transmitter

  • User-friendly menu interface with a backlit graphic display

  • HDX compander for crystal clear sound

  • Enhanced AF frequency response

  • Backlit graphic display

  • 4-stage battery status display

  • Charging contacts for recharging BA2015

  • Auto-lock feature to prevent settings from being changed accidentally

  • Hi Boost, adjustable limiter, stereo/focus mode, selectable balance on receiver

  • Wide range of accessories for virtually any use

Teknisk info
RF frequency range 516..... 865 MHz
Transmission/receiving frequencies 1680 (max. 20 Presets)
Switching bandwidth 42 MHz
Peak deviation +/- 48 kHz
Compander HDX
Frequency response (microphone) 80.....18000 Hz
Signal-to-noise ratio > 115 dB(A)
THD, total harmonic distortion < 0,9 %
In compliance with ETS 300422 , ETS 300445 , CE , FCC
Audio-XLR connector 3,5 mm jack
RF output power 10/30 mW
Operating time (transmitter) > 8 h
Input voltage range 1,8 V line
Input voltage range max. 3,0 V eff line
Dimensions (Transmitter) 82 x 64 x 24 mm
Weight (Transmitter) ~ 160 g
