Overview

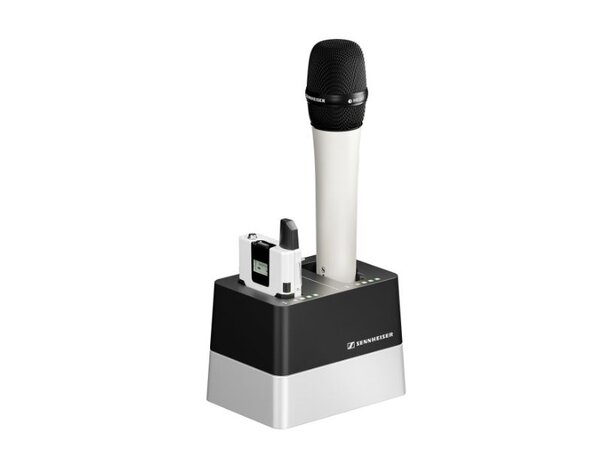

The CHG 2N is a network enabled charger featuring two indiviual charging bays. These can either be used for the SL Bodypack DW or the SL Handheld DW. Each bay is combined with 4 LEDs to indicate the corresponding battery status of the mobile device.

The flexible network interface provides IPv4 and IPv6 compatibility for seamless integration. All settings and status information can be monitored and remote controlled with the Sennheiser Control Cockpit.

Features

• Remote Monitoring via Sennheiser Control Cockpit

Technical Data

• Dimensjoner140 x 100 x 102 mm (5.3" x 3.9" x 4")
• Vekt609g (excl. Power supply)
• Operating temperature0 °C to 45 °C (32 °F to 113 °F)
• • Input voltage range12V
  • KontaktRJ 45
  • Ladetidapprox. 2h
  • Strømforbruk1.2 A
  • Charging Current1A per bay
  • Ladespenning5V
  • Firmware updateyes
