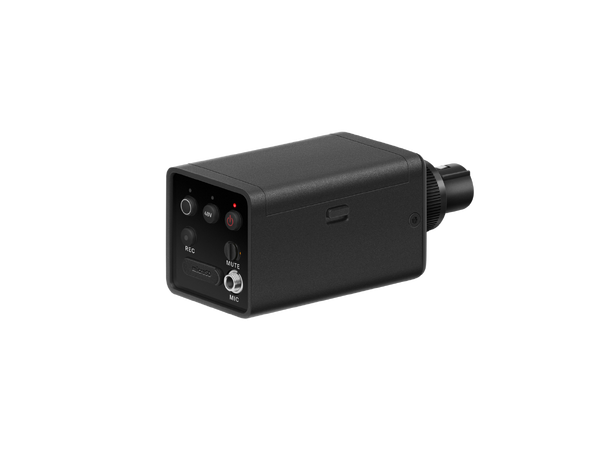

| SPECIFICATIONS |
|
|
|
| System |
|
|
|
|
Audio
link |
Q1-6 |
470.2 - 526 MHz |
|
frequency ranges |
R1-6 |
520
- 576 MHz |
|
|
R4-9 |
552 - 607.8 MHz |
|
|
S1-7 |
606.2
- 662 MHz |
|
|
S4-7 |
630 - 662 MHz |
|
|
S7-10 |
662
- 693.8 MHz |
|
|
U1/5 |
823.2 - 831.8 MHz & |
|
|
|
863.2
- 864.8 MHz |
|
|
V3-4 |
925.2 - 937.3 MHz |
|
|
Y1-3 |
1785.2
- 1799.8 MHz |
|
Bluetooth®
Low Energy |
|
|
|
(BLE) frequency range |
|
Bluetooth®
Low Energy |
|
|
|
(BLE) frequency range |
|
Audio frequency response |
|
20
Hz - 20 kHz (-3 dB) |
|
|
|
@ 3 dBfs |
|
Audio THD |
|
=
-60 dB for 1 kHz |
|
|
|
@ -3 dBfs input level |
|
Dynamic range |
|
134
dB |
|
System
latency |
|
1.9 ms |
|
Operating temperature |
|
-10
°C - +55 °C |
|
|
|
(14 °F - 131 °F) |
|
Relative humidity |
|
5
- 95 % (non-condensing) |
| EW-DP
EK |
|
|
|
|
Input voltage |
|
~
1.8 - 4.35 V |
|
Input
current |
|
Typ. < 250 mA / Max. < 400 |
|
|
|
mA
(BA 70) |
|
|
|
Typ. < 400 mA / Max. < 750 |
|
|
|
mA
(2x AA batteries) |
|
|
|
< 300 mA@5 V (USB-C |
|
|
|
standalone) |
|
Power
Supply |
|
2x AA batteries 1.5V or BA70 |
|
|
|
rechargeable
battery pack or |
|
|
|
USB-C PD power supply |
|
|
|
(max.): |
|
|
|
• 5V / 1500mA |
|
|
|
•
9V / 900mA |
|
|
|
• 12V / 700mA |
|
Transmit power (radiated) |
|
BLE:
max. 10 mW EIRP |
|
Audio
output power |
|
< 2 dBV max. (high level) /
< |
|
|
|
4dBU
max (high level) |
|
Headphone
Output |
|
< 50 mW into 16 Ohms |
|
Dimensions |
|
86
x 67 x 28 mm |
|
|
|
(3.39" x 2.64" x
1.1") |
|
Weight (without antennas |
|
approx.
140g (0.31 lbs) |
|
and
power supply) |
|
|
| EW-D SK (Bodypack Transmitter) |
|
|
|
|
Input
voltage |
|
2.0 - 4.35 V |
|
Input current |
|
<
300 mA |
|
Power
supply |
|
2 AA batteries 1.5 V (al- |
|
|
|
kali
manganese) or BA 70 |
|
|
|
rechargeable battery pack |
|
Occupied bandwidth |
|
200
kHz |
|
Transmit
power (radiated) |
|
Audio link: 10 mW ERP |
|
|
|
(Range
Y1-3: 12 mW ERP) |
|
|
|
BLE: max. 10 mW EIRP |
|
Dimensions (without anten- |
|
63
x 80 x 20 mm |
|
na) |
|
(2.48" x 3.15" x
0.79") |
|
Weight (without batteries) |
|
approx.
120 g (0.26 lbs) |
| ME
2 (Lavalier Microphone) |
|
|
|
|
Transducer principle |
|
pre-polarized
condensor |
|
|
|
microphone |
|
Pick-up pattern |
|
omni-directional |
|
Sensitivity
(free field, no |
|
17 mV/Pa |
|
load) (1 kHz) |
|
|
|
Max.
SPL at 1 kHz |
|
130 dB |
|
Frequency response |
|
50
to 18,000 Hz |
|
Equivalent
noise level |
|
32 dB |
|
A-weighted |
|
|
|
Connector |
|
3.5 mm jack |
|
Cable length |
|
approx.
1.60 m (62.99") |
|
Supply
voltage |
|
7.5 V |
