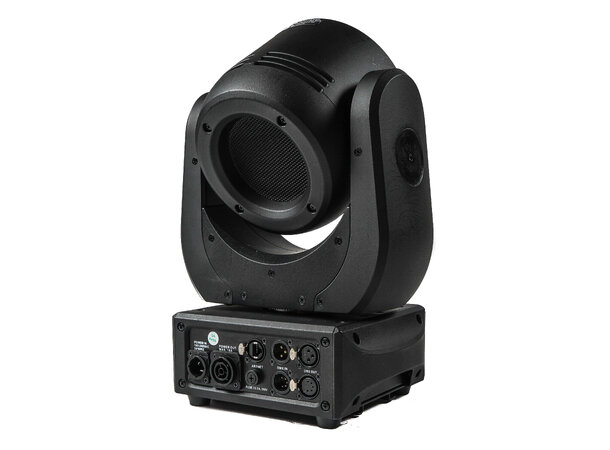

Snow Frost Q3 Wash

3x40W RGBW/PixelMap/Art-Net/4.5-36 zoom

Varenr: Frost Q3 Wash
15 996,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoTilbehør
Beskrivelse

The very compact but extremely powerful Frost Q3 Wash utilises 3 x 40W RGBW Osram Ostar LEDs coupled with a 8:1 zoom system (4.5-36 degree) for extra powerful beams and wide, lush washes with perfect color mixing.



It offers 16-bit dimming with 4 selectable dimming curves, 0-25Hz strobe, and individual control of the LEDs (pixel mapping).



Weighing in at a mere 6.2kg it packs an incredible punch for its size.



Control is managed through both 3-and 5-pin DMX with support for RDM, Art-Net on Ethercon RJ45 and built in W-DMX from Wireless Solution in Sweden.

Teknisk info
  • 3 x 40W Osram Ostar RGBW
  • Powercon I/O, 3&5 Pin DMX/RDM
  • Artnet (Ethercon RJ45)
  • User friendly interface
  • 4.5-36 degree zoom
  • Universal power supply



             Technical specifications

  • Light output:
  • Lux @ 3m 14400
  • LED type 3 x 40W Quad-LED (RGBW).
  • LED color RGBW (Red, green, blue, white)
  • Drive current 2.5A
  • Refresh rate: Selectable 1200MHz-25.000Hz
  • Power 100~240VAC…50/60Hz
  • Power consumption: 140W Max
  • Control signal type: DMX/RDM/Artnet/W-DMX
  • Number of DMX channels 13(HSIC),13(Person1),15(CMY),21(Person2),21(Pixel)

              Optics:

  • Beam angle, 4.5-36°



              Dimensions:

  • 338 x 260 x 185 mm
  • Weight 6.2 kg
  • Housing material: Flame retardant plastic
  • Color: Black

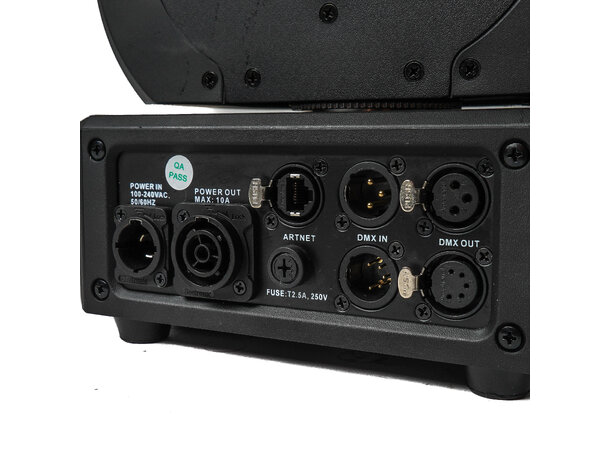

             Connections:

  • DMX: 3 & 5 pin in/out
  • Artnet: Ethercon (RJ45)
  • Power: Powercon true 1 in/out
  • Forced convection cooling
  • Operating temperature: 0 – +45 grader Celsius
  • Ingress protection IP20, dry location



  • Certification: CE, MET
