| TECHNICAL
SPECIFICATIONS |
| Electrical |
| Power Consumption 5W maximum |
| Phantom Power Yes; 48V,
up-to 75mA maximum |
| Power-over-Ethernet IEEE 802.3af, Class 0 |
| Ambient Operating
Temperature 32-104oF (0-40oC) |
| Networking (Audio) Dante™ with AES67 compliance |
| Input Type(s) Mic;
Line. Software-selectable |
| Output Type(s) Mic; Line. Software-selectable
|
|
Audio Gain Input: Up-to +45dB in 5dB steps, adjustable per input |
| Output: odB to -60dB, 1dB increments; adjustable per output |
| Sampling Rate(s) 44.1
kHz, 48kHz |
| Humidity 0-98%, non-condensing |
| Altitude 0-6,600 feet
(0-2000 Meters) MSL |
| Mechanical |

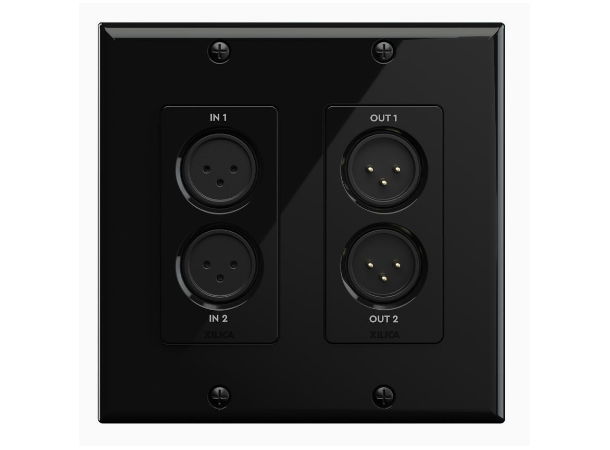

| Connector(s) 2 x
Neutrik XLR3M, 2 x Neutrik XLR3F, 1 x RJ45 with Link and Speed indicators |
| Indicator(s) LED indicator for Power and Status; |
| Momentary button for
network discovery and factory reset |
| Weight 0.4lbs; 0.2kg |
| Dimensions Height:
4.2" / 107mm |
| Width: 3.5" / 89mm |
| Depth: 2.0" / 51mm |
| Mounting Single-gang EU/UK electrical box or dual-gang US junction
box; in-wall |
| General |
| Compliance CE, FCC Part 15B, RoHS, WEEE |
| Warranty Xilica Three
Year Limited Warranty |
| Part Number(s) 2200-003-0402 |
