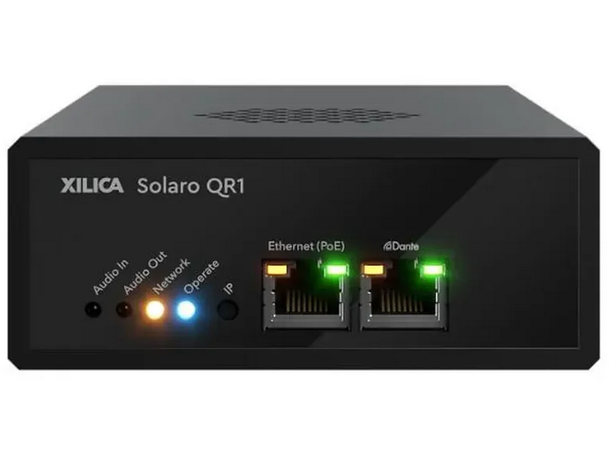

Xilica Solaro QR1 rack kit

Benefits

• The QR1 is designed around a compact but powerful dual core processor and Xilica Designer’s drag-and-drop simplicity
• Features modular I/O architecture to maximize I/O requirements per project and reduce unnecessary spending
• 8 user-configured card slots accept 2ch analog audio input and output plug-in cards; 2ch AES/EBU digital audio input and output plug-in cards; and 4ch GPIO plug-in cards selectable as input or output. A maximum of 16 audio channels (8 card slots) and 32 GPIO channels (8 card slots). Any card type, in any combination, in any card slot maximizes I/O flexibility
• 4x4 I/O of Dante network audio transport is included
• QR1 connects to a wide range of control interfaces, including: our new XTouch50 and XTouch80 touch controls; wireless iOS and Android control devices and PC and Mac computers via our free XTouchApp; our GPIO card control ports; and any third-party control system (Crestron, AMX, others)
• Power the QR1 using an external power supply (included) or via PoE

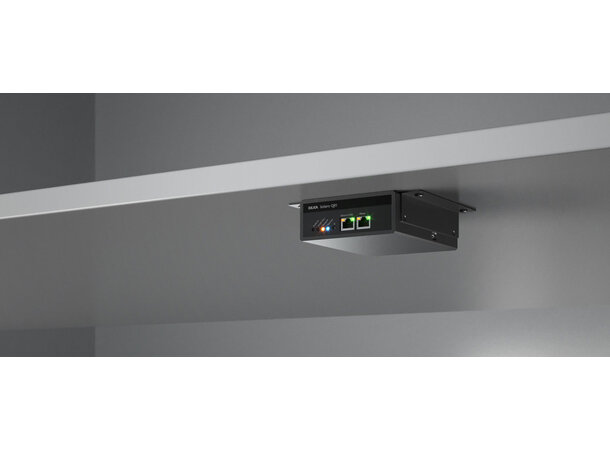

• Options: QR1-AEC model provides AEC mic inputs up to 8ch@250ms / 16ch@100ms (soft-key activated) and dual rack mount kit. (Surface mount bracket included)
