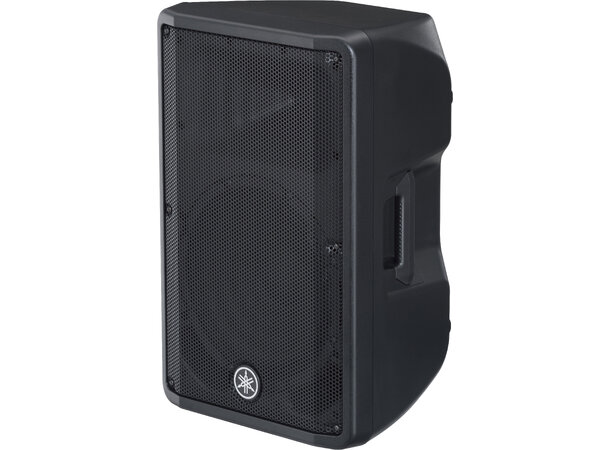

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.- Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications
General specificationsSpeaker typeFrequency range (-10dB)Nominal coverageHVComponentsLFHFCrossoverPower ratingNOISEPGMPEAKNominal impedanceSPLSensitivity (1W; 1m on axis)Peak (Calculated)I/O connectorsCabinet materialFinishHandleFlying and mounting hardwarePole socketDimensionsWHDNet weightAccessories
| CBR12 | CBR10 |
|---|
| General specifications |
|---|
| Speaker type | 2-way Speaker, Bass-reflex Type | 2-way Speaker, Bass-reflex Type |
|---|
| Frequency range (-10dB) | 48 Hz - 20 kHz | 50 Hz - 20 kHz |
|---|
| Nominal coverage | H | 90° | 90° |
|---|
| V | 60° | 60° |
|---|
| Components | LF | 12" Cone, 2" Voice Coil (Ferrite Magnet) | 10" Cone, 2" Voice Coil (Ferrite Magnet) |
|---|
| HF | 1.4" Voice Coil, Compression Driver (Ferrite Magnet) | 1" Voice Coil, Compression Driver (Ferrite Magnet) |
|---|
| Crossover | 2.1 kHz | 2.8 kHz |
|---|
| Power rating | NOISE | 175W | 175W |
|---|
| PGM | 350W | 350W |
|---|
| PEAK | 700W | 700W |
|---|
| Nominal impedance | 8O | 8O |
|---|
| SPL | Sensitivity (1W; 1m on axis) | 96dB SPL | 94dB SPL |
|---|
| Peak (Calculated) | 125 dB SPL | 123 dB SPL |
|---|
| I/O connectors | 1/4" Phone x 1, speakON NL4MP x 1 | 1/4" Phone x 1, speakON NL4MP x 1 |
|---|
| Cabinet material | Plastic | Plastic |
|---|
| Finish | Black | Black |
|---|
| Handle | Side x 2 | Top x 1 |
|---|
| Flying and mounting hardware | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) | Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts) |
|---|
| Pole socket | F35 mm Bottom x 1 | F35 mm Bottom x 1 |
|---|
| Dimensions | W | 376mm (14.8") | 308mm (12.1") |
|---|
| H | 601mm (23.7") | 493mm (19.4") |
|---|
| D | 348mm (13.7") | 289mm (11.4") |
|---|
| Net weight | 13.9 kg (30.6 lbs) | 9.4 kg (20.7 lbs) |
|---|
| Accessories | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 | Optional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400 |
|---|
