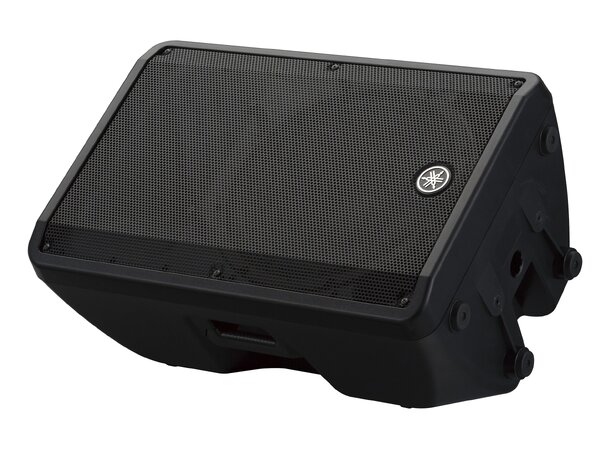

Yamaha CBR15 2-way Passive Loudspeaker

2-way Speaker, Bass-reflex Type

Varenr: CBR15
4 028,-eks mva.
BeskrivelseTeknisk infoAlternativerSupport
Beskrivelse

The CBR Series is a new lineup of passive loudspeakers developed by adopting the extensive knowledge of speaker designand acoustic technologies that Yamaha has accrued over a long and storied history of making speakers of every kind.Combining a meticulous materials selection process, thorough customization of the audio components, and a fresh, innovativeapproach to speaker design, our engineering team's primary focus was to deliver high-power, high-definition sound in a highlyportable and versatile design that is equally at home in front-of-house, floor monitoring, or rigged configurations.

Custom Designed Transducers and Wide-Dispersion Constant Directivity Horn for Powerful High-Definition Sound- HF Protection Function and Highly Responsive LF Unit for Reliable Performance at Any Output Level- Rugged, Highly Portable Enclosure Design- Simple Connectivity- Versatility for a Variety of Applications



General specificationsSpeaker typeFrequency range (-10dB)Nominal coverageHVComponentsLFHFCrossoverPower ratingNOISEPGMPEAKNominal impedanceSPLSensitivity (1W; 1m on axis)Peak (Calculated)I/O connectorsCabinet materialFinishHandleFlying and mounting hardwarePole socketDimensionsWHDNet weightAccessories



CBR15CBR12
CBR15CBR12
General specifications
Speaker type2-way Speaker, Bass-reflex Type2-way Speaker, Bass-reflex Type
Frequency range (-10dB)46 Hz - 20 kHz48 Hz - 20 kHz
Nominal coverageH90°90°
V60°60°
ComponentsLF15" Cone, 2.5" Voice Coil (Ferrite Magnet)12" Cone, 2" Voice Coil (Ferrite Magnet)
HF1.4" Voice Coil, Compression Driver (Ferrite Magnet)1.4" Voice Coil, Compression Driver (Ferrite Magnet)
Crossover2.0 kHz2.1 kHz
Power ratingNOISE250W175W
PGM500W350W
PEAK1000W700W
Nominal impedance8O8O
SPLSensitivity (1W; 1m on axis)96dB SPL96dB SPL
Peak (Calculated)126 dB SPL125 dB SPL

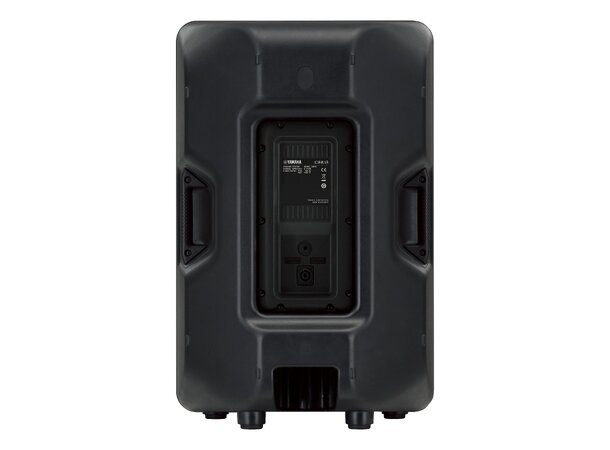

I/O connectors1/4" Phone x 1, speakON NL4MP x 11/4" Phone x 1, speakON NL4MP x 1
Cabinet materialPlasticPlastic
FinishBlackBlack
HandleSide x 2Side x 2
Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)Bottom x 2, Rear x 1 (Fit for M8 x 15mm Eyebolts)
Pole socketF35 mm Bottom x 1F35 mm Bottom x 1
DimensionsW455mm (17.9")376mm (14.8")
H700mm (27.6")601mm (23.7")
D378mm (14.9")348mm (13.7")
Net weight17.7 kg (39.0 lbs)13.9 kg (30.6 lbs)
AccessoriesOptional Speaker Bracket: BBS251, BCS251, BWS251-300, BWS251-400
Teknisk info
   * 2.1Khz FIR-X Tuning
   * 52Hz-20kHz
   * All-new Dynamic 1000W Amplifier (LF 800W+HF 200W)
   * Maximum SPL 131dB peak
   * D-Contour EQ Main/Monitor
   * Premium-grade, custom-designed transducers
   * Exclusive 90° × 60° CD Waveguide Horn
   * Compact and lightweight Plastic Cabinet (15,8kg)
   * Performs as main PA or floor monitor
   * Stand and pole mountable, with 35mm pole sockets
   * Integrated M8 rigging points for suspended applications
