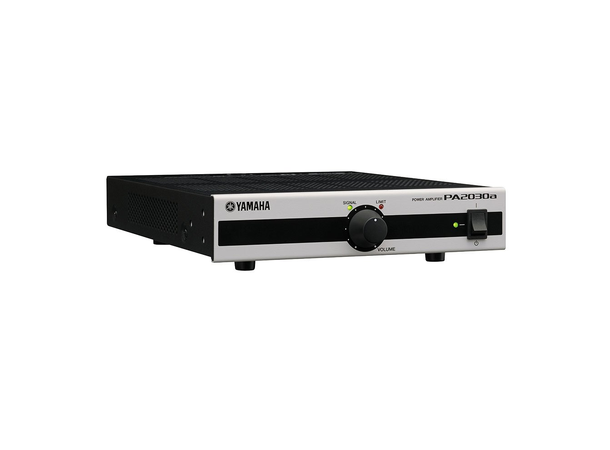

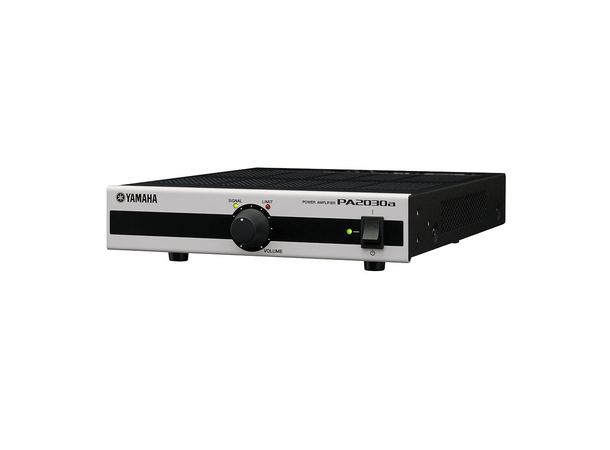

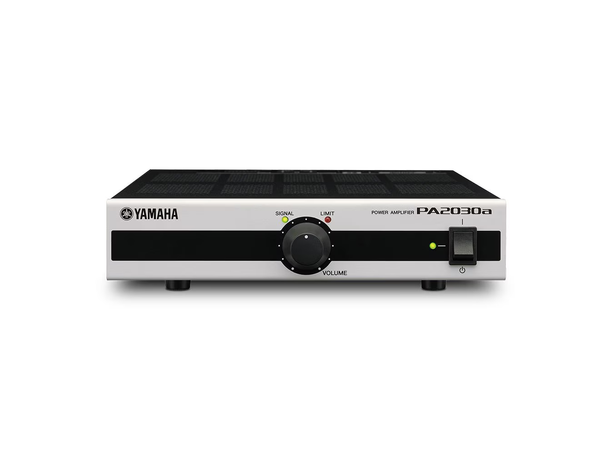

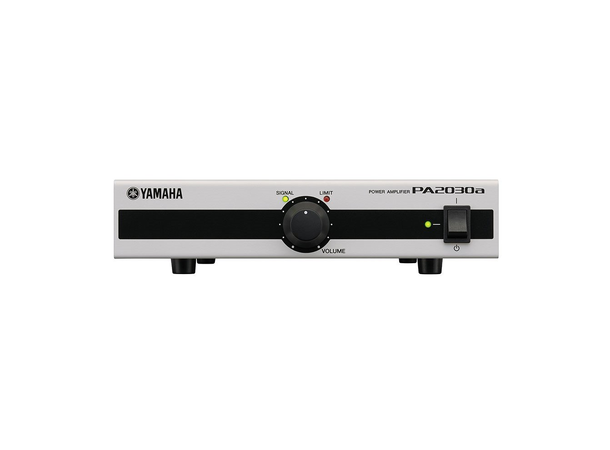

PA2030a |
| General specifications |
|
|
| Output
power |
1kHz
(THD+N=1%: 3O) |
30W x 2 (20ms Burst) |
|
1kHz (THD+N=1%: 4O) |
30W
x 2 (20ms Burst) |
|
1kHz
(THD+N=1%: 8O) |
30W x 2 (20ms Burst) |
|
High impedance: 100V line |
60W
x 1 |
|
High
impedance: 70V line |
60W x 1 |
| Total harmonic distortion |
|
=
0.1% (Line in to Speaker out @1kHz, Half power, 3O/4O/8O), = 0.2% (Line in to
Speaker out @1kHz, Half power, 70V/100V) |
| Frequency
response |
|
0dB, -3.0dB, +1.0dB (Line in to
Speaker out, 50Hz to 20kHz, 1W, 3O/4O/8O), 0dB, -3.0dB, +1.0dB (Line in to
Speaker out, 90Hz to 20kHz, 1W, 70V/100V) |
| Crosstalk |
|
- |

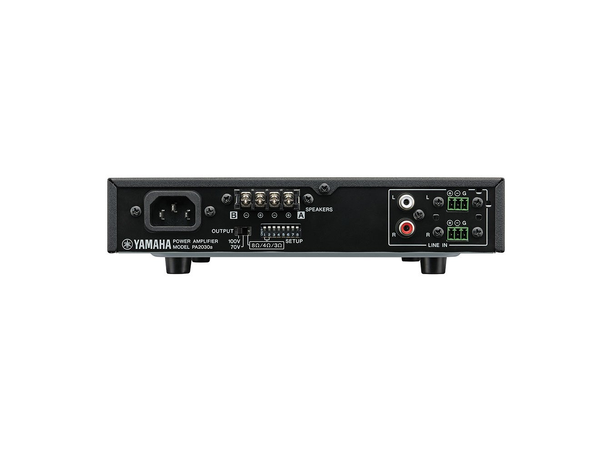

| I/O
Connectors |
Mic/Line
Input |
- |
|
Line Input |
- |
|
Høyttaler
Utgang |
Barrier strip x 2 pairs |
|
Linje Ut |
- |
|
Control
ports |
- |
|
Mic Input |
- |
|
Stereo
Input |
LINE IN: Stereo RCA pin
(unbalanced), 3.5mm Euroblock (3-pin, balanced) x 2 |
| Input Level |
|
Line
input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max
before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal),
+24dBu (Max before clip) |
| Utgangs
Nivå |
|
- |
| Processors |
|
Speaker
EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz) |
| Protection
circuit |
Load
protection |
Power switch on/off: Mute the
output*, Output voltage protection: Compress the output*, DC-fault: Power
supply shutdown (*Restored automatically) |
|
Amplifier protection |
Thermal:
Limit the output* ? Mute* ? Shutdown, Over current: Mute the output*,
Integrated power limit: Compress the output* (*Restored automatically) |
|
Power
supply protection |
Thermal: Power supply shutdown,
Over voltage: Power supply shutdown, Over current: Power supply shutdown |
| Amplifier class |
|
Class
D |
| Cooling |
|
Conventional cooling, bottom to
up airflow |
| Power requirements |
|
100V,
120V, 230V-240V; 50Hz/60Hz |
| Power
consumption |
|
30W (1/8max. power, 3O, AC 100V,
pink noise at all channels) |
| Dimensions |
W |
215mm
(8.5”) *1 |
|
H |
54mm (2.1”) *1 |
|
D |
288mm
(11.4”) *1 |
| Net
weight |
|
1.8kg (4.0lbs) |
| Accessories |
|
AC
power cable, 3.5mm Euroblock plug (3-pin) x 2, Owner’s manual, Specification
sheet |
| Options |
|
RKH1 (Rack-mount Accessory) |
| Certificate |
|
- |
| Others |
|
Operating Temperature: 0°C to +
40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring
sufficient ventilation above and below the |
