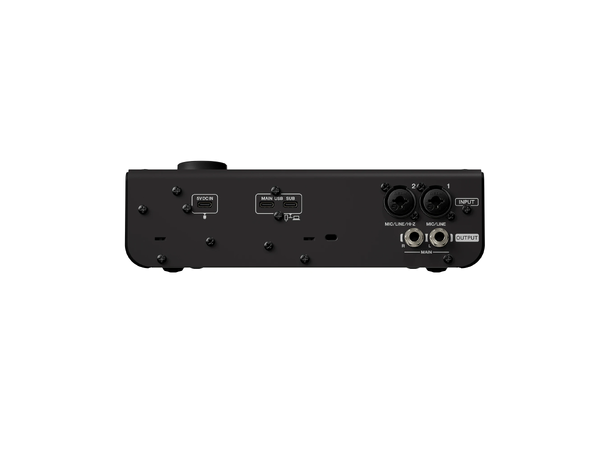

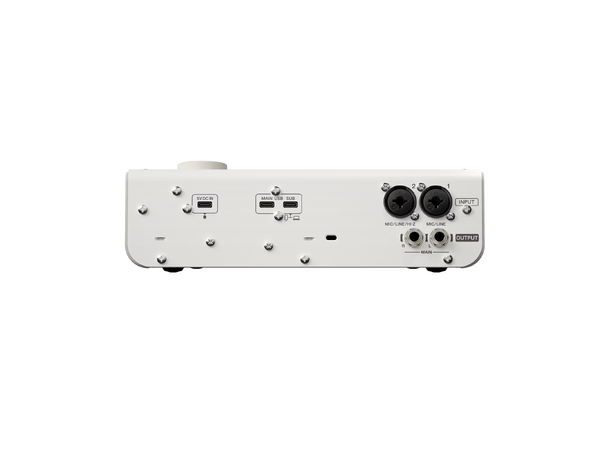

| I/O Connectors |
Analog Input |
2 Combo (1 Mic/Line/3.5 mm headset mic, 1 Mic/Line/Hi-Z) + 1
AUX (3.5 mm phone) |
|
Analog Output |
2 TRS |
|
USB
TO HOST |
2
(USB Type-C, MAIN: 32-bit/SUB: 16-bit) |
|

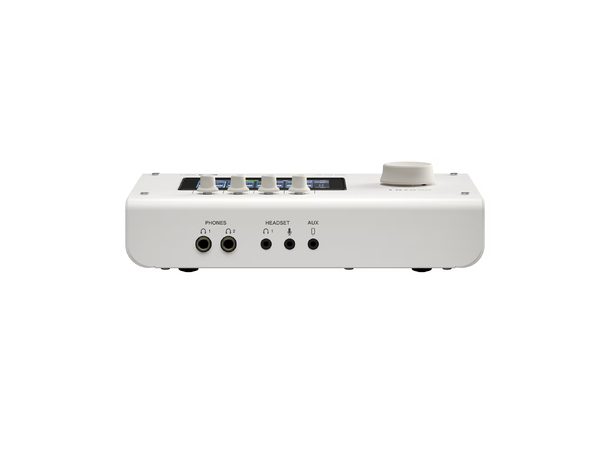

Phones |
2 TRS, 1 mini headset phones (100
mW+100 mW @40 Ohm) *The first TRS Phones port and the 3.5 mm mini port cannot
be used simultaneously. |
|
DC |
2
(Type-C USB MAIN bus power or Type-C USB DC IN) |
|
microSD Card Slot |
- |
|
HDMI |
- |
|
MIDI |
- |

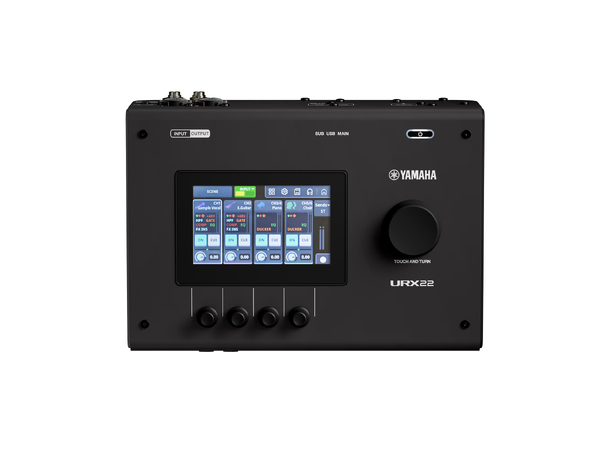

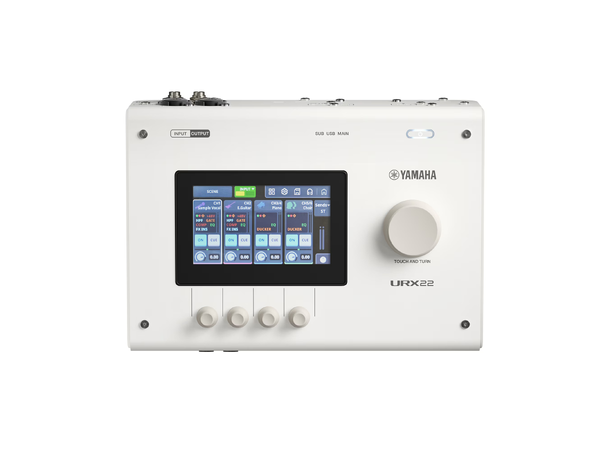

| User Interface |
|
4.3-inch
touch screen, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND
TURN") |
| Recording & Playback |
USB |
16-track recording, 16-track playback |
|
USB
(SUB) |
2-track
recording, 2-track playback |
|
microSD Card |
- |
| Sampling frequency rate |
|
192
kHz - 44.1 kHz |
| Frequency response |
|
+0.0/-0.2 dB (20 Hz – 20 kHz) |
| Dynamic range |
|
[MIC/LINE/Hi-Z]
115 dB, [MAIN OUTPUT] 125 dB |
| Total harmonic distortion |
|
[MIC/LINE/Hi-Z] 0.0008 %, 1 kHz, 20
kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF |
| Hum & noise level |
Equivalent
input noise |
-128
dBu, A-Weighted |
| Gain range |
|
78 dB |
| Power requirements |
|
DC5
V/ 3.0 A |
| Power consumption |
|
15 W (Off mode power: 0.1 W) |
| Auto power off |
|
2
minutes, 5 minutes, 10 minutes, 15 minutes, 20 minutes or Never (factory
default) |
| Dimensions |
W |
245 mm (9.6") |
|
H |
78
mm (3.1") |
|
D |
182 mm (7.2") |
| Net weight |
|
1.9
kg (4.2 lb) |
| Included Accessories |
|
Start Guide, Safety Guide, Steinberg
Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX
Suite license card, USB-C to USB-C Cable (USB 2.0, 1.5 m) |
| Operating temperature |
|
0
to + 40 ? |
| Storage temperature |
|
-20 to + 60 ? |
| Mixing Capacity |
Input
Channels |
2
mono + 4 stereo + 2 FX |
|
Mix Buses |
2 (stereo) |
|
Stereo
Buses |
1 |
|
FX Buses |
2 |
|
Cue
Buses |
1 |
| On-board processors |
DSP |
Gate, Compressor, EQ, Sweet Spot
Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator),
Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay,
REV-X (Reverb) |
