| I/O

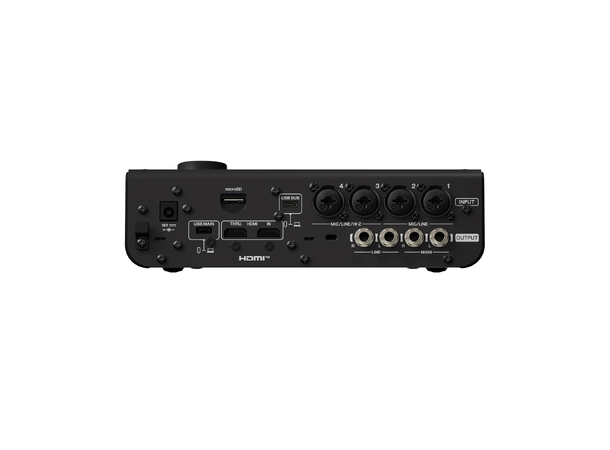

Connectors |
Analog Input |
4 Combo (1 Mic/Line/3.5 mm
headset mic, 1 Mic/Line, 2 Mic/Line/Hi-Z) + 1 AUX (3.5 mm Phone) |
|
Analog Output |
4
TRS |
|
USB TO HOST |
2 (USB Type-C, MAIN: 32-bit/SUB:
16-bit) |
|

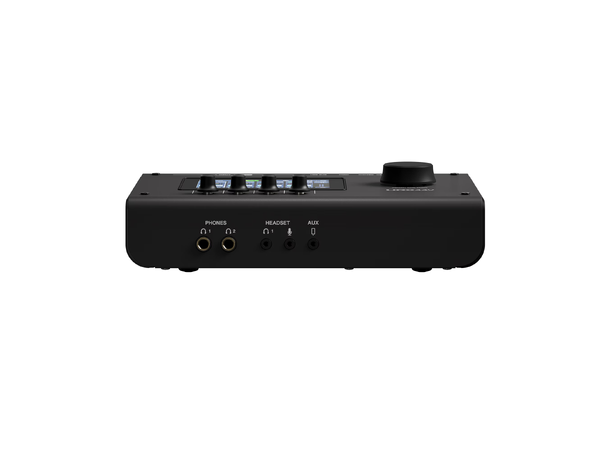

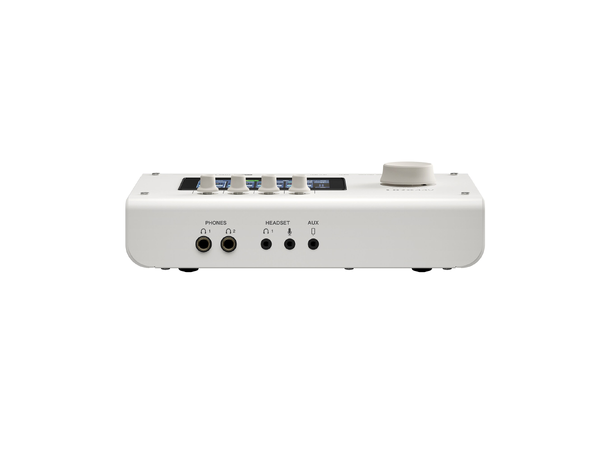

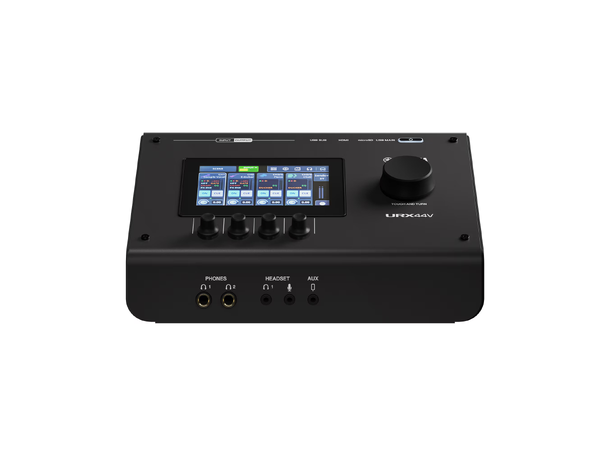

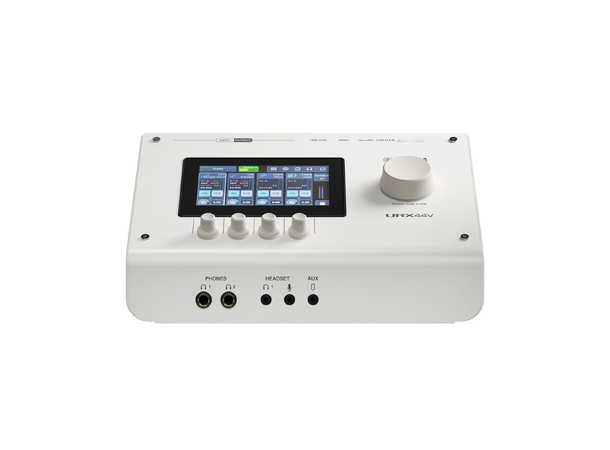

Phones |
2
TRS, 1 mini headset phones (100 mW+100 mW @40 Ohm) *The first TRS Phones port
and the 3.5 mm mini port cannot be used simultaneously. |
|
DC |
1 (Barrel type, DC power IN) |
|
microSD
Card Slot |
1 |
|
HDMI |
1 IN / 1 THRU (Audio/Video
input/capture/pass-through) |
|
MIDI |
- |

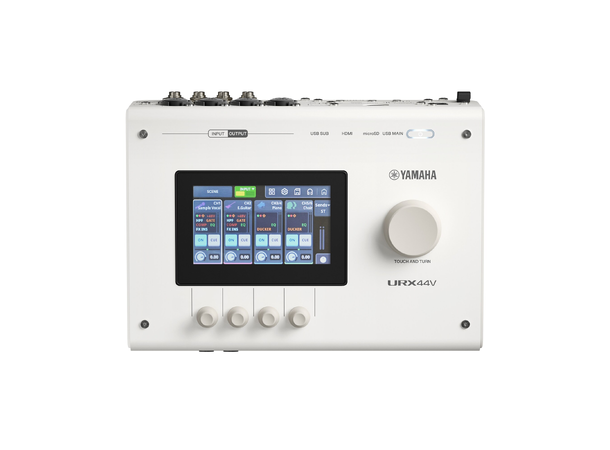

| User Interface |
|

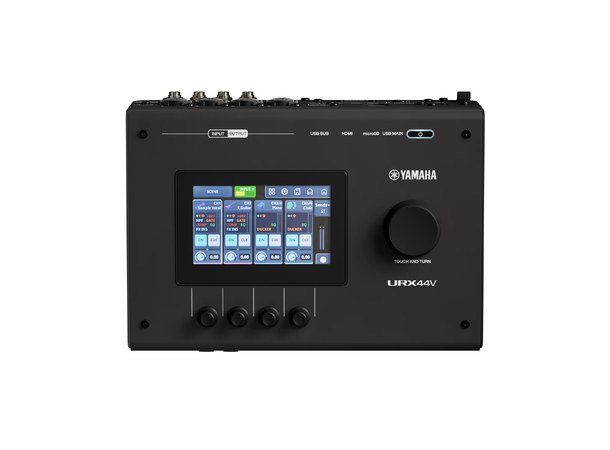

4.3-inch touch screen, 5 x rotary
encoder (4 x screen knob, 1 x "TOUCH AND TURN") |
| Recording & Playback |
USB |
18-track
recording, 18-track playback |
|
USB (SUB) |
2-track recording, 2-track playback |
|
microSD
Card |
Up
to 16-track recording, 2-track playback |
| Sampling frequency rate |
|
192 kHz - 44.1 kHz |
| Frequency response |
|
+0.0/-0.2
dB (20 Hz – 20 kHz) |
| Dynamic range |
|
[MIC/LINE/Hi-Z] 115 dB, [MAIN OUTPUT]
125 dB |
| Total harmonic distortion |
|
[MIC/LINE/Hi-Z]
0.0008 %, 1 kHz, 20 kHz LPF; [MAIN OUTPUT] 0.00036%, 1 kHz, 20 kHz LPF |
| Hum & noise level |
Equivalent input noise |
-128 dBu, A-Weighted |
| Gain range |
|
78
dB |
| Power requirements |
|
DC16 V/2.4 A, PA-300C AC power
adapter (100 V-240 V, 50 Hz/60 Hz) |
| Power consumption |
|
38.4
W (Off mode power: 0.1 W) |
| Auto power off |
|
2 minutes, 5 minutes, 10 minutes, 15
minutes, 20 minutes (factory default) or Never |
| Dimensions |
W |
245
mm (9.6") |
|
H |
78 mm (3.1") |
|
D |
182
mm (7.2") |
| Net weight |
|
2.0 kg (4.4 lb) |
| Included Accessories |
|
Start
Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab
Cast, Steinberg Plus), Basic FX Suite license card, USB-C to USB-C Cable (USB
3.2, 1 m), AC Power Adapter (PA-300 including power cord), Ferrite Core |
| Operating temperature |
|
0 to + 40 ? |
| Storage temperature |
|
-20
to + 60 ? |
| Mixing Capacity |
Input Channels |
4 mono + 4 stereo + 2 FX |
|
Mix
Buses |
2
(stereo) |
|
Stereo Buses |
1 |
|
FX
Buses |
2 |
|
Cue Buses |
1 |
| On-board processors |
DSP |
Gate,
Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp
Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band
Compressor, Compander, Delay, REV-X (Reverb) |
