Blustream CAT100AU

Digital Audio Over CAT

Varenr: CAT100AU
1 691,-eks mva.
BeskrivelseTeknisk infoTilbehørAlternativerSupport
Beskrivelse

CAT100AU
Digital Audio Over CAT


Description
Our CAT100AU Audio over CAT5e/6 extender kit transmits audio signals up to a distance of 300m (192kHz signals up to 100m). This plug-and-play device accepts both optical and coaxial digital inputs and includes a built in DAC to enable use of the stereo left / right audio output from either input.


Key Features
Extend optical and coaxial digital audio signals up to distances of 300m* over a single CAT cable

Both optical and coaxial digital can be distributed at the same time

Built in DAC (Digital to Analogue audio Converter) converts either optical or coaxial digital (selectable) to analogue stereo left/right audio output (source selected on receiver unit)

Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz and 192kHz up to 24-bit resolution

Ultra low jitter and high fidelity design
*CAT100AU supports distances of up to: 192kHz - 100m, 96kHz - 150m, < 48kHz - 300m



Box Contents
1 x CAT100AU-TX
1 x CAT100AU-RX
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual

Teknisk info

Specifications

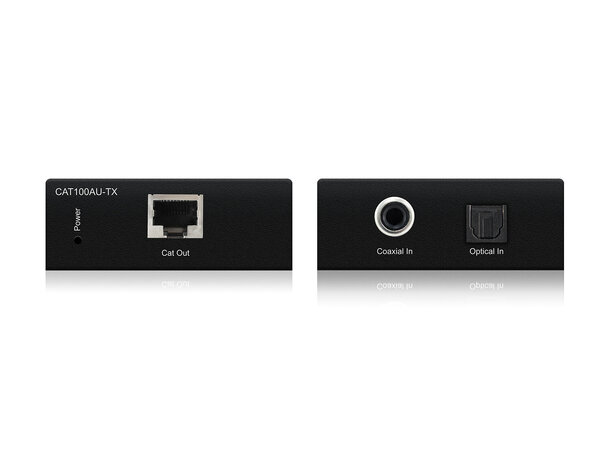

CAT100AU-TX - Transmitter

 - Audio Input Connectors: 1 x Optical (SPDIF) & 1 x RCA (SPDIF)

 - Output Connectors: 1 x RJ45

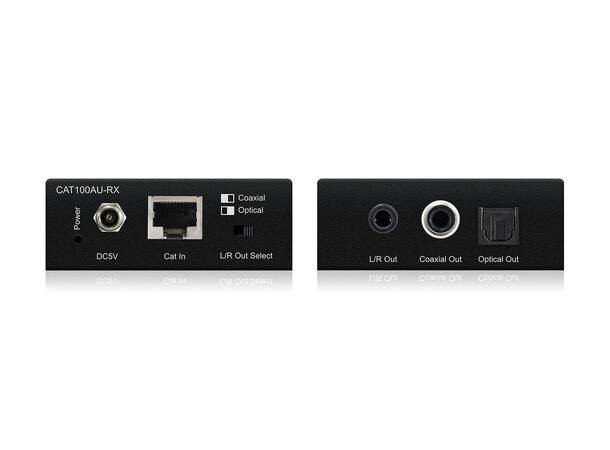

CAT100AU-RX - Receiver

 - Input Connectors: 1 x RJ45 & 5V/1A DC

 - Output Connectors: 1 x Optical (SPDIF), 1 x RCA (SPDIF) & 1 x Analogue left / right - 3.5mm stereo audio jack

Balun Dimensions (W x D x H): 65 x 80 x 25mm (with connections)

Balun Dimensions (W x D x H): 65 x 70 x 25mm (without connections)

Ind. Balun Weight: 0.13kg (excluding accessories)

Carton / Box Dimensions (W x D x H): 210 x 125 x 95mm

Shipping Weight: 0.6kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/1A DC, barrel type connector

Power supplied to the Transmitter unit from the Receiver
