Blustream SP14AB-V2

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter

Varenr: SP14AB-V2
3 077,-eks mva.
BeskrivelseTeknisk infoTilbehørAlternativerSupport
Beskrivelse
SP14AB-V2

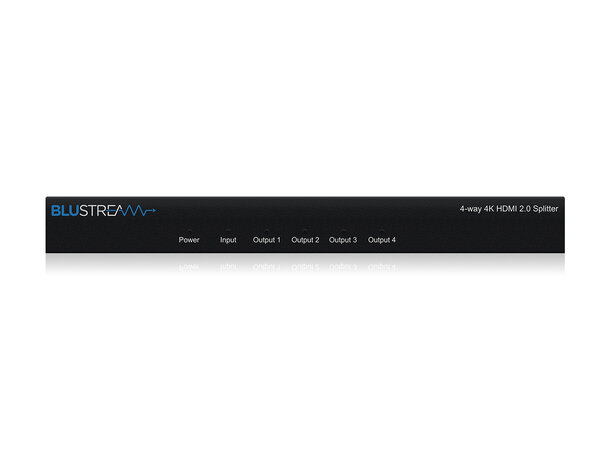

4-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Audio Breakout and EDID Management



Description
Our SP14AB-V2 4K HDMI 2.0 splitter distributes a single HDMI source to four simultaneous outputs. The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.




Key Features
Features 1 x HDMI input that is replicated to 4x HDMI outputs

Supports HDMI 2.0 18 Gbps specification including HDR

Supports up to 4K UHD 60Hz 4:4:4

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

Advanced EDID management

HDCP 2.2 Support



Box Contents
1 x SP14AB-V2
1 x 5V/2A DC Power Supply
1 x Quick Reference Guide

Teknisk info
Specification

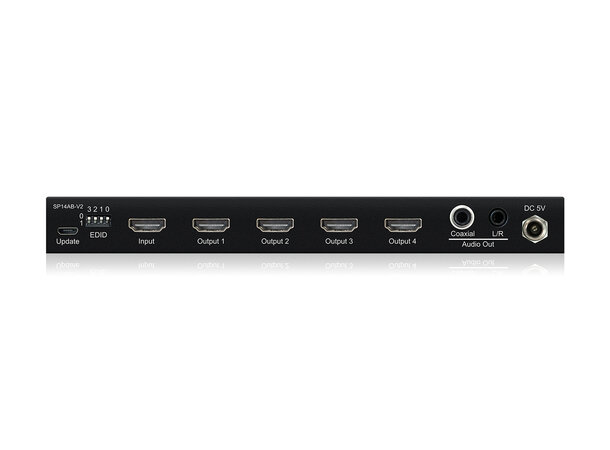

Video Input Connectors: 1 x HDMI Type A

Video Output Connectors: 4 x HDMI Type A

EDID: 4-PIN DIP switch

Audio Output Connectors: 1 x RCA (S/PDIF), 1 x Analogue audio L/R (3.5mm stereo jack)

Dimensions (W x D x H): 203mm x 84mm x 23mm , without feet

Shipping Weight: 0.5kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Power Supply: 5V/2A DC
