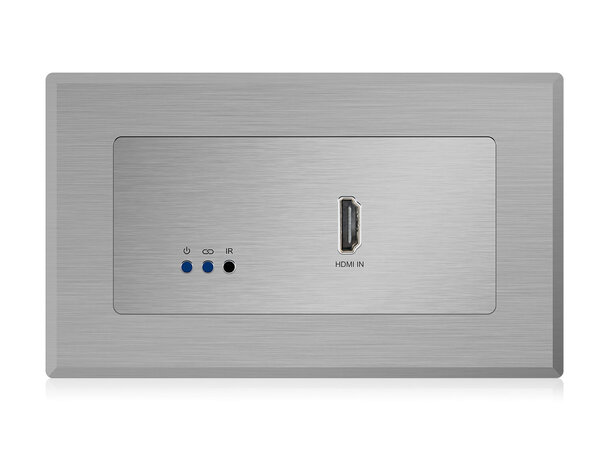

Blustream HEX11WP-TX

HDMI Wall Plate HDBaseT™ Transmitter

Varenr: HEX11WP-TX
4 056,-eks mva.
BeskrivelseTeknisk infoTilbehørAlternativerSupport
Beskrivelse
HEX11WP-TX
HDMI Wall Plate HDBaseT™ Transmitter - HDMI, RS-232 and IR up to 70m (4K up to 40m)


Description
Our HEX11WP-TX HDMI wall plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.


Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Extends HDMI at 1080p up to a distance of 70m

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products

Bi-directional RS-232 pass through

Supports IR pass-through to HDBaseT™ Receiver / Matrix device

Compatible with all Blustream HDBaseT™ Receiver / Matrix products *

Magnetic faceplate surround allowing both UK & EU backbox compatibility

HDCP 2.2 support

* Technical performance is subject to the features supported on the connected HDBaseT™ device


Box Contents
1 x HEX11WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate surround
1 x Quick Reference Guide

Teknisk info
Specifications

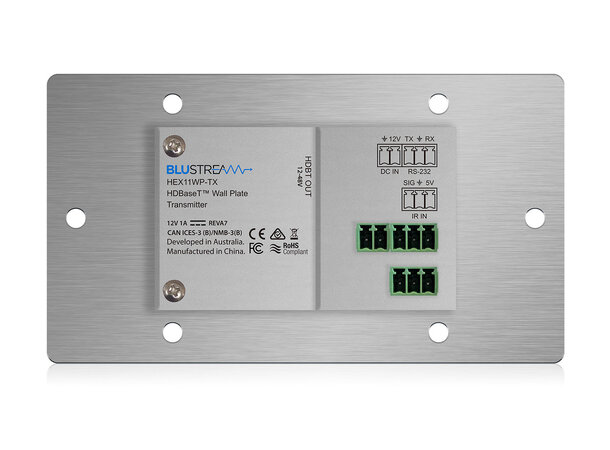

Video Input Connectors: 1 x HDMI Type A, 19-pin, female

Video Output Connectors: 1 x HDBaseT™ RJ45 connector

RS-232 serial port: 1 x 3-Pin Phoenix connector

IR Input port: 1 x 3-Pin Phoenix connector

Local power input: 1 x 2-Pin Phoenix connector

Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)

Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm

Backbox Mounting Depth: 40mm (minimum) - not supplied

Shipping Weight:

Operating Temperature: 32°F to 104°F (-5°C to +55°C)

Storage Temperature : -4°F to 140°F (-25°C to +70°C)

Power Supply: 12V/1A DC
