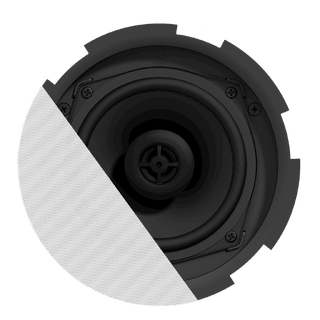

Audac CIRA 524 Toveis takhøyttaler Hvit 24W 8ohm/100V

Audac CIRA 524 Toveis takhøyttaler Hvit

24W 8ohm/100V

Varenr: CIRA524/W
796,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoAndre kjøpte ogsåAlternativer
Beskrivelse

Designed to offer the best value for money ratio. The CIRA series are coaxial 2-way ceiling speakers featuring exceptional intelligibility and musical performance. The TwistFix™ borderless grill design offers easy but solid assembly and a completely seamless transition from grill to ceiling. This results in a perfect blend in to its environment. The QuickFit™ installation system combined with FastCon™ connector offers lifetime stability and great installers convenience.

The CIRA5 features a 5 ¼” driver using polypropylene cone material, combined with a 1” Mylar tweeter fitted with a phase plug for excellent off axis performance. The selected materials guarantee a low distortion performance with smooth and flat frequency response. A continuous power handling of 30 Watt (RMS) and maximum power handling of 60 watt is achieved, while fitted with a multi-tapping 100V line transformer with tappings for 6W, 3W, 1.5W and an 8 Ohm  or  16 Ohm bypass connection.

VARIANTS

  • CIRA506/W - White version, 8? & 6 Watt @ 100V
  • CIRA524/W - White version, 8? & 24 Watt @ 100V
  • CIRA530D/W - White version, 16 ?

Teknisk info
SYSTEM SPECIFICATIONS
Max. Power60 W
RMS Power30 W
Sensitivity (1W/1m)87 dB
Speaker type2-way coaxial
Impedance16 ? (CIRA530D)
8 ? (CIRA506 & CIRA524)
ConnectorsMulti-tap Fast-con™ connections
Sound Pressure (Max. W/1m)@ 100 V102 dB
FrequencyResponse (± 3 dB)60 Hz - 20 kHz
Range (-10 dB)45 Hz - 20 kHz
DispersionConical145°
DriversLF5 ¼" Woofer
HF1”
Line Transformer Tappings16 W - 1667 ? (CIRA506)
24 W - 417 ? (CIRA524)
23 W - 3333 ? (CIRA506)
12 W - 833 ? (CIRA524)
31.5 W - 6667 ? (CIRA506)
6 W - 1667 ? (CIRA524)
PRODUCT FEATURES
Cut-out measurement170 mm (Ø)
Dimensions193 x 83 mm (Ø x D)
Weight1.10 kg (CIRA506)
1.15 kg (CIRA524)
1.05 kg (CIRA530D)
ConstructionABS
Front finishTwist-Fix™ Borderless finely perforated steel grill
MountingQuick-Fit™ mounting system
ColoursWhite (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W)
Built-in depth83 mm (CIRA524)
75 mm (CIRA506 & CIRA530D)
Dimensions193 mm (Ø)
