OBS! DEMOVARE

Egenskaper:

* To-veis full rekkevidde høyttaler med 8-tommers LF-driver og en 1-tommers komprimeringsdriver.
* Passivt crossover-brett har separate kjølesoner for å sikre sikker og kontinuerlig drift i de tøffeste miljøene.
* Bred spredning på 90 × 60 grader, med roterbart horn for horisontal installasjon.
* Designet for faste og mobile applikasjoner, med et bredt utvalg av flyalternativer.
* Har topp hatter for rask oppsett.
* NL4 INPUT og LINK OUT-tilkoblinger som standard.
* Robust kabinett laget av førsteklasses multilaminatbjørk kryssfiner.
* Slagbestandig teksturert maling.

Specification of XY-81

Enclosure Type
Two-way passive, reflex-loaded

Frequency Response
75 Hz to 20 kHz

Sensitivity (1 W/1 m)
91 dB

Nominal Impedance
8 O

Power Handling
350 W RMS, 700 W Program

Maximum SPL
116 dB cont., 122 dB peak

Dispersion
90 °H × 60 °V, rotatable

Driver Configuration
8 inch (200 mm) LF cone driver,
1-inch (25 mm) exit neodymium HF compression driver

Crossover
Asymmetric internal passive crossover

Connectors
2 × Neutrik SpeakON™ NL4

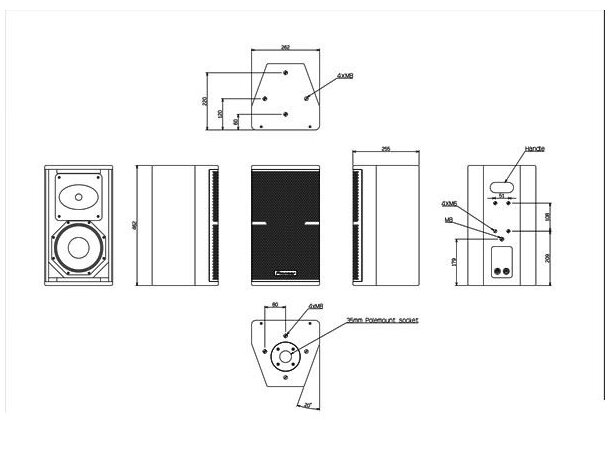

Dimensions (W×H×D)
262 × 462 × 255 mm
(10.3× 18.2 × 10-inch)

Weight
12 kg (26.5 lbs)

Rigging and Hardware
8 × M8 threaded mounting points (4 top/4 bottom),
1 × M8 threaded mounting points on rear,
4 × M6 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket

Grille
Hex punched steel

Enclosure
15 mm (0.6-inch) birch plywood

Finish
Impact-resistant, Black semi-matt textured

Suggested Power Amplifier
Recommended : K2DSP
Minimum : M20DHDSP

Accessories
polemount socket cover
(-W model only)
