Egenskaper:
* To-veis full rekkeviddehøyttaler med 10-tommers LF-driver og en 1-tommers komprimeringsdriver.
* Passivt crossover-brett har separate kjølesoner for å sikre sikker og kontinuerlig drift i de tøffeste miljøene.
* Bred spredning på 90 × 60 grader, med roterbart horn for horisontal installasjon.
* Designet for faste og mobile applikasjoner, med et bredt utvalg av flyalternativer.
* Har topp hatter for rask oppsett.
* NL4 INPUT og LINK OUT-tilkoblinger som standard.
* Robust kabinett laget av førsteklasses multilaminatbjørk kryssfiner.
* Slagbestandig teksturert maling.

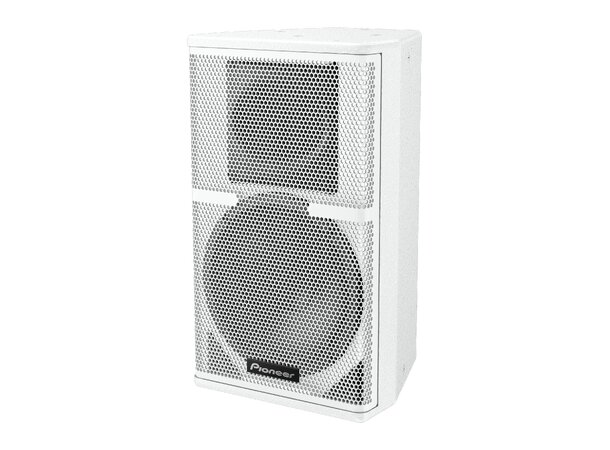

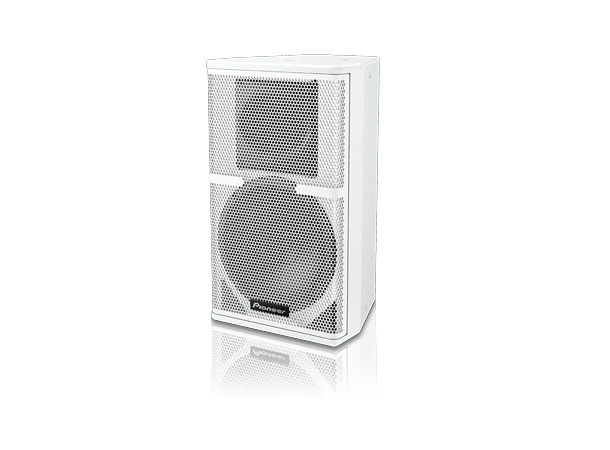

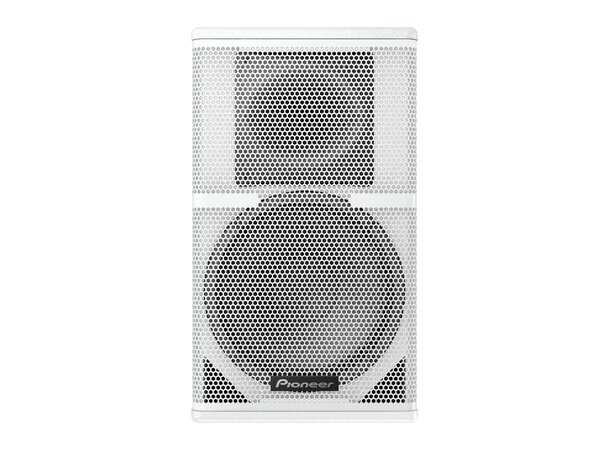

Specification of XY-101
| Enclosure Type | Two-way passive, reflex-loaded |
|---|
| Frequency Response | 70 Hz to 20 kHz |
|---|
| Sensitivity (1 W/1 m) | 94 dB |
|---|
| Nominal Impedance | 8 O |
|---|
| Power Handling | 400 W RMS, 800 W Program |
|---|
| Maximum SPL | 120 dB cont., 126 dB peak |
|---|
| Dispersion | 90 °H × 60 °V, Rotatable |
|---|
| Driver Configuration | 10 inch (250 mm) neodymium LF cone driver,
1 inch (25 mm) exit neodymium HF compression driver |
|---|
| Crossover | Asymmetric internal passive crossover |
|---|
| Connectors | 2 × Neutrik SpeakON™ NL4 |
|---|
| Dimensions (W×H×D) | 292 × 508 × 280 mm
(11.5 × 20 × 11 inch) |
|---|
| Weight | 14 kg (30.9 lbs) |
|---|
| Rigging and Hardware | 8 × M8 threaded mounting points (4 top/4 bottom),
3 × M8 threaded mounting points on rear,
4 × M8 threaded mounting points on side (2 left/2 right),
4 × M6 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket |
|---|
| Grille | Hex punched steel |
|---|
| Enclosure | 15 mm (0.6 inch) birch plywood |
|---|
| Finish | Impact-resistant, Black semi-matt textured |
|---|
| Suggested Power Amplifier | Recommended : K2DSP
Minimum : M30DHDSP |
|---|
| Accessories | polemount socket cover
(-W model only) |
|---|
