Egenskaper:

* To-veis full rekkeviddehøyttaler med 15-tommers LF-driver og en 1,4-tommers komprimeringsdriver.
* Passivt crossover-brett har separate kjølesoner for å sikre sikker og kontinuerlig drift i de tøffeste miljøene.
* Bred spredning på 90 × 60 grader, med roterbart horn for horisontal installasjon.
* Designet for faste og mobile applikasjoner, med et bredt utvalg av flyalternativer.
* Har topp hatter for rask oppsett.
* NL4 INPUT og LINK OUT-tilkoblinger som standard.
* Robust kabinett laget av førsteklasses multilaminatbjørk kryssfiner.
* Slagbestandig teksturert maling.

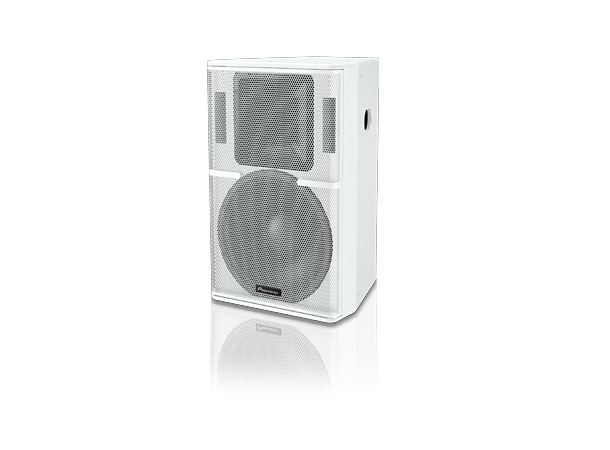

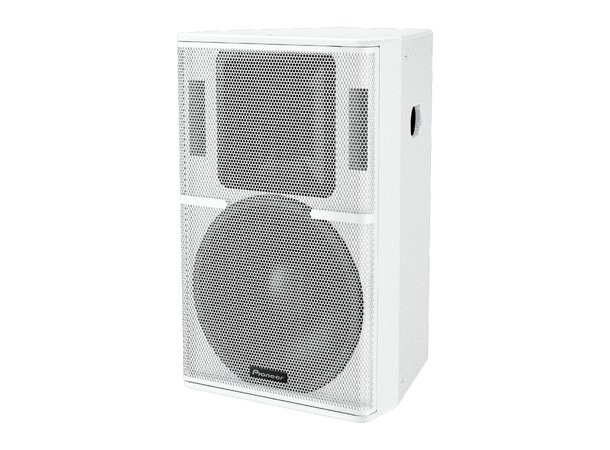

Specification of XY-152

Enclosure Type
Two-way passive, reflex-loaded

Frequency Response
50 Hz to 20 kHz

Sensitivity (1 W/1 m)
98 dB

Nominal Impedance
8 O

Power Handling
650 W RMS, 1300 W Program

Maximum SPL
126 dB cont., 132 dB peak

Dispersion
90 °H × 60 °V, Rotatable

Driver Configuration
15 inch (380 mm) neodymium LF cone driver,
1.4 inch (36 mm) exitneodymium HF compression driver

Crossover
Asymmetric internal passive crossover

Connectors
2 × Neutrik SpeakON™ NL4

Dimensions (W×H×D)
440 mm × 715 mm × 444 mm
(17.3 inch × 28.1 inch × 17.5 inch)

Weight
29 kg (63.9 lbs)

Rigging and Hardware
8 × M10 threaded mounting points (4 top/4 bottom),
3 × M10 threaded mounting points on rear,
4 × M10 threaded mounting points on side (2left/2 right),
4 × M8 threaded points on rear (for wall mount bracket),
2 × flush handles (1 left/1 right),
1 × 35 mm polemount socket

Grille
Hex punched steel

Enclosure
15 mm (0.6 inch) birch plywood

Finish
Impact-resistant, Black semi-matt textured

Suggested Power Amplifier
Recommended : K3DSP
Minimum : M30DHDSP

Accessories
polemount socket cover
(-W model only)
