Sennheiser SL Komplett m/bordmikrofon

Sennheiser SL Komplett m/bordmikrofon

Varenr: 506614
17 475,-
Logg inn for å se din forhandlernetto.Søk om å bli forhandler her.
BeskrivelseTeknisk infoTilbehør
Beskrivelse

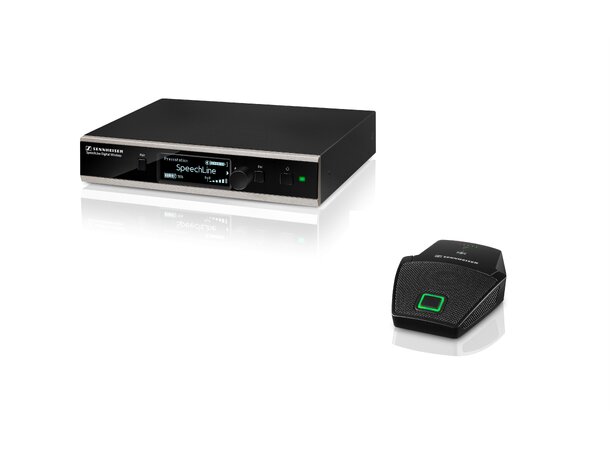

SL Boundary Set DW omfatter den trådløse mikrofonen SL Boundary 114-S DW, SL DW rackmottaker og alt som trengs for bruk og installasjon. SL Boundary 114-S DW er optimalisert for overføring av tale i konferanserom. SL Boundary 114-S DW er helt uavhengig av kabler, noe som gir svært fleksible bruksmåter. SL Boundary SET DW har induktiv lading, og SL Boundary 114-S DW kan lades enten trådløst eller via USB. Den trådløse strømsenderen CHG Qi 2W for to mobile enheter kan leveres separat. SL Boundary 114-S DW har egne lysdioder for klar og tydelig visning av batteristatus. Settet leveres med oppladbare accupacks med opptil 12 timers driftstid. Alle enhetene kan monitoreres og styres med Sennheiser Control Cockpit.

Teknisk info

Technical Data

System
Frequency response 20 to 20.000 Hz
Dynamic range > 128 dB (A)
THD, total harmonic distortion typ. < 0,1 %
Audio sampling 24 bit/48 kHz
Signal-to-noise ratio = 109 dB (A)
RF frequency range 2,400 to 2,483.5 MHz
Modulation GFSK with back channel
Transmission method TDMA, time diversity, frequency diversity, fast switching antenna diversity
Latency 3.9 ms
Audio codec APT-X Live
Operating temperature – 10 °C to +55 °C
Storage temperature – 20 °C to +70 °C (The temperature range is influenced by the battery characteristics)

SKM D1
Frequency response 50 to 20,000 Hz
RF output power adaptive, up to 100 mW, 10 mW fix (country-specific)
Display LCD
Weight approx. 280 g incl. microphone head
Input sensitivity automatic sensitivity adjustment
Battery Specification 2 x AA size battery (1.5 V), Operating time: typ. 6 h
Accupack BA 10 (Li-Ion, 3.7 V), Operating time: typ. 11 h (optional accessory)

EM D1
RF sensitivity <-90 dBm
RF output power Back channel 10mW/100mW (country-specific)
Audio output Mic/line level switch –12 dB/0 dB, XLR, balanced max +18 dBu, Jack, unbalanced/balanced max +12 dBu/max +18 dBu
Low-cut filter at 120 Hz
Equalizer 7-band graphic equalizer
Automatic gain control (AGC) compression/expansion with automatic make-up gain function
Display OLED
Connection XLR/¼" (6.3 mm) jack
Antenna connector 2 x Rev-SMA
Network socket RJ45
Network protocol Media Control Protocol, UDP IPv4 (DHCP, Manual)/IPv6
Power supply 12 V DC hollow jack
Current consumption 350 mA
Weight approx. 824 g

SK D1
RF output power adaptive up to 100mW, 10mW fix (country-specific)
Connection 3.5 mm jack socket, lockable
Weight approx. 85 g
Input sensitivity automatic sensitivity adjustment
Battery Specification 2 x AA size battery (1,5V), Operating time: typ. 6 h
Accupack BA 30 (Li-Ion, 3.7V), Operating time: typ. 11 h
Microphone Frequency response: 50 to 20,000 Hz
Max. input level: 2.2 V RMS
Line Frequency response: 20 to 20,000 Hz
Max. input level: 3.3 V RMS
Input impedance 1 M?

What's in the box?

  • EM-D1 rackmount receiver
  • SKM-D1 handheld transmitter
  • MZQ microphone clamp
  • NT-12 power supply
  • Transport Case
  • User Manual
