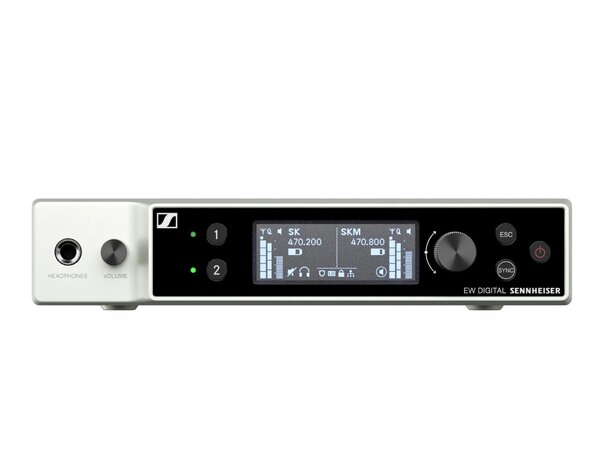

2 channel half rack receiver for use with Evolution Wireless Digital handheld and bodypack transmitters.
• EM 2 : 2 channel half rack (9,5") with Dante®
• 88 MHz switching bandwidth
• Equidistant Channel Spacing: 146 channels in Standard Mode; 293 channels in Link Density Mode
• Antenna power and loop through up to 16 channels (4 x EM 4)
• Secure AES 256 encryption
• Network enabled for control with Sennheiser Control Cockpit / media control system through a number of 3rd party modules
• Flexible network mode from single cable to a full redundancy
• Clear and easy focused user interface with OLED display
• Ethernet connectivity (IPv4 and IPv6) • All-metal housing
| Frequency variants | Region |
|---|
| Q1-9 | 470.2 - 550 MHz | EU, US, Canada, Middle East, Japan |
| R1-9 | 520 - 607.8 MHz | EU, US, Canada, Australia, Middle East, Japan |
| S1-10 | 606.2 - 693.8 MHz | UK, Australia, Korea, Japan |
| S2-10 | 614.2 - 693.8 MHz | EU |
| S4-10 | 630 - 693.8 MHz | China |
| U1/5 | 823.2 - 831.8 MHz & 863.2 - 864.8 MHz | EU, UK |
| V3-4 | 925.2 - 937.3 MHz | Korea |
| V5-7 | 941.700 - 951.800 & 953.050 - 956.050 & 956.650 - 959.650 MHz | US, Canada |
| Y1-3 | 1785.2 - 1799.8 MHz | EU, UK, Australia |
