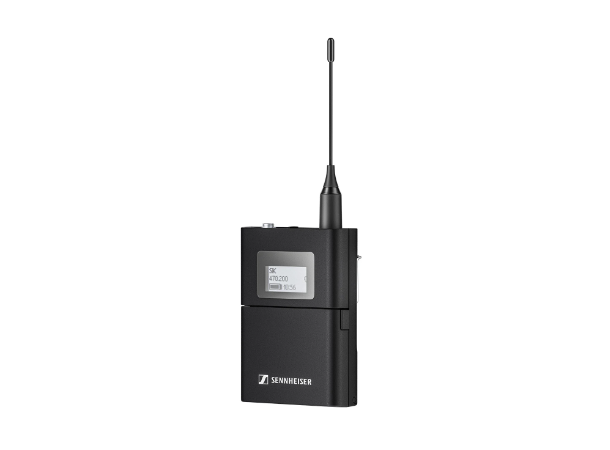

Sennheiser EW-DX simplifies your professional workflow by utilizing refined technologies to deliver a digital UHF system that can be scaled with ease. With its advanced feature set and hardware options, classrooms, corporate campuses, and live performance productions benefit from a network-ready system that is designed to integrate seamlessly. AutoScan quickly assesses your environment and uses equidistant channel spacing to deploy frequencies while tools like Sennheiser’s Control Cockpit, Wireless Systems Manager, and Smart Assist App allow you to monitor your system remotely.
134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
10mW fixed RF power for up to 100 m/328 ft of range
Charging contacts for in-device charging with CHG 70N charger (sold separately)
Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
Function buttons - control all the transmitter settings directly from bodypack including button lock function
Programmable mute switch - RF mute, AF mute or disabled
Digital audio trim
Mic input trim control
Test tone generator
Switchable LED configuration (On/Off)
Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
Instrument input with cable emulation to simulate cable characteristics
Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection
Metal housing
Worldwide usage (specific frequencies subject to local RF regulations)
Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
