Egenskaper:

* Høyeffekt subwoofer med en 18-tommers lavfrekventdriver.
* Kan reprodusere dyp bass helt ned til 35 Hz uten forvrengning.
* Sterke søyler installert i skapet sikrer stivhet mot den kraftigste bassen.
* Krever en aktiv crossover for å stille inn det nødvendige frekvensområdet (forhåndsinnstillinger kan gis fra Pioneer for kombinasjoner som bruker Pioneer XY-152,XY-122, XY-101 og XY-81).
* NL4 INPUT og LINK OUT-tilkoblingersom standard.
* Polmontering for rask oppsett med andre Pioneer-produkter.
* Robust kabinett laget av førsteklasses multilaminatbjørk kryssfiner.

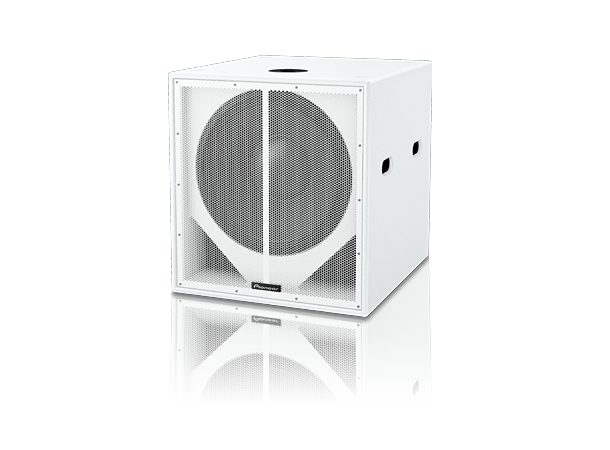

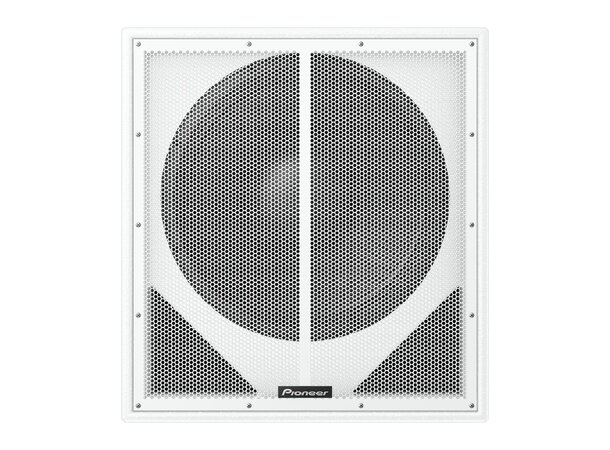

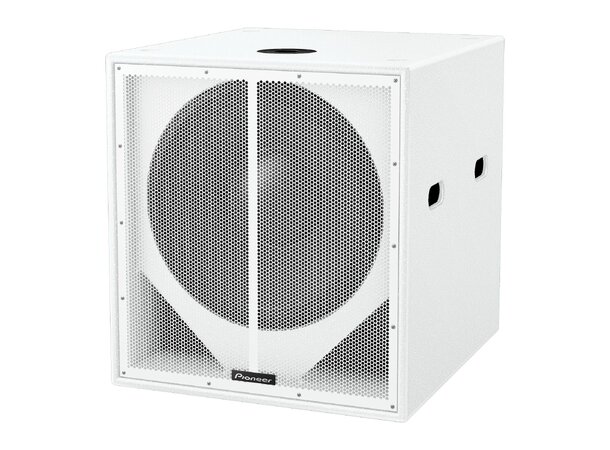

Specification of XY-118S

Enclosure Type
Single driver, reflex-loaded subwoofe

Frequency Response
35 Hz to150 Hz

Sensitivity (1 W/1 m)
97 dB (half space)

Nominal Impedance
8 O

Power Handling
1000 W RMS, 2000 W Program

Maximum SPL
127 dB cont., 133 dB peak (half space)

Dispersion
-

Driver Configuration
18 inch (460 mm) LF cone driver

Crossover
-

Connectors
2 × Neutrik SpeakON™ NL4

Dimensions (W×H×D)
590 × 643 × 650 mm
(23.2 × 25.3 × 25.6-inch)

Weight
52 kg (114.7 lbs)

Rigging andHardware
4 × flush handles (2 left/2 right),
1 × M20 polemountsocket for mid/high enclosures,
4 × rubber feet (bottom) and 4×mating recesses (top),
16 × M8 threaded points for 4 ×castorson rear

Grille
Hex punched steel

Enclosure
18 mm (0.7-inch) birch plywood

Finish
Impact-resistant, Black semi-matt textured

Suggested Power Amplifier
Recommended : K10DSP
Minimum : K3DSP

Accessories
polemount socket cover
(-W model only)
