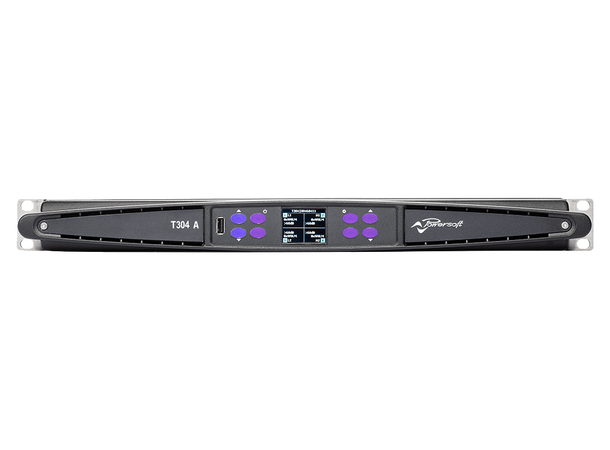

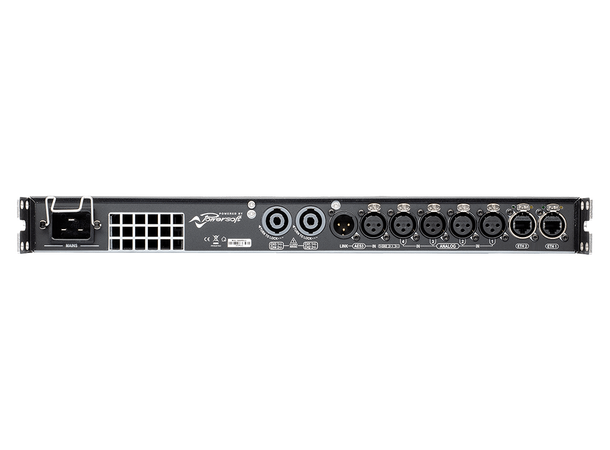

The T Series is a very flexible and cost-effective amplifier platform with loudspeaker processor.
All models deliver the same high peak voltage allowing high SPL with single 8/16 ohm cabinets on all models. The high voltage is also good for sharing power between the channels for applications such as bi-amped loudspeakers or subwoofers with passive tops.
MyPowersoft services are available for this product
| GENERAL |
| Output power per channel |
| Output power per channel | 750W @ 2 O | 750 W @ 4 O | 750 W @ 8 O |
| Bridge mode | | 1500 W @ 4 O | 1500 W @ 8 O |
| Max output voltage / current |
| Max unclipped output voltage @8 O | | | 145 Vpeak |
| Current | | | 50 Apeak |
| AC MAIN POWER |
| Power supply | Universal, regulated switch mode with PFC (Power Factor Correction) |
| Nominal power requirement | | | 100-240 V ±10%, 50-60 Hz |
| Operating voltage | | | 90 V – 264 V |
| Power consumption/ Current draw |
| 1/8 of max output power @ 4 O | | 120 V: 537 W – 4.7 A | 230 V: 525 W – 2.7 A |
| THERMAL |
| Thermal dissipation |
| 1/8 of max output power @ 4 O | | 120 V: 537 BTU/h -135.3 kcal/h | 230 V: 512 BTU/h -129.0 kcal/h |
