Description

Key Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

• Enhanced slimline chassis

• Extends HDMI 1080p up to a distance of 70m over a single CAT cable

• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• Bi-directional IR pass-through

• Supports bi-directional PoC (Power over Cable) to power, or be powered from, a compatible receiver point (power supply not included)

• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility

• HDCP 2.2 compliant

•

• Specifications

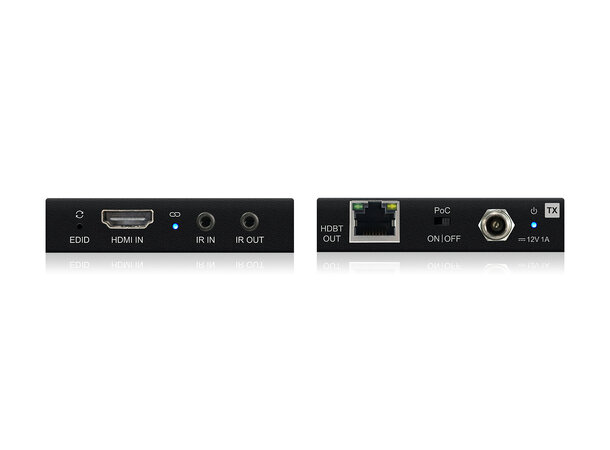

• • Video Input Connectors: 1 x HDMI Type A, 19-pin, female

  • Video Output Connectors: 1 x HDBaseT™ RJ45 connector

  • IR Input Ports: 1 x 3.5mm stereo jack

  • IR Output Ports: 1 x 3.5mm mono jack

  • EDID: Pin hole button

  • Power Supply: 12V/1A DC

  • Dimensions: 106mm x 73mm x 16mm (LxWxH)

  • Shipping Weight: 0.8kg

  • Operating Temperature: 32°F to 104°F (-5°C to +55°C)

  • Storage Temperature : -4°F to 140°F (-25°C to +70°C)
