Blustream SW41HDBT Autoswitch2+2kanal 4K HDBT/HDMI switch

14 017,-

Description

Our SW41HDBT is a 4-Way HDMI 2.0 4K 60Hz 4:4:4 HDBaseT™ switch utilising CSC technology to deliver HDMI and HDBaseT™ inputs to simultaneous HDMI / HDBaseT™ outputs.
The SW41HDBT provides enhanced features including PoC to power connected Blustream Transmitter and Receiver products, web GUI for configuration and control, source / display control via CEC, manual or automated source selection, RS-232 pass-through and control via front panel, IR, RS-232 and TCP/IP.
The SW41HDBT is an ideal product for your boardroom, classroom or huddle-space application when used in conjunction with our Blustream HDBaseT™ wall-plate solutions.

Box Contents

1 x SW41HDBT
1 x 24V/5A DC Power Supply
1 x IR Receiver
1 x IR Control Cable - 3.5mm - 3.5mm
1 x RS-232 Control Cable
1 x Mounting Kit
1 x Quick Reference Guide

Key Features

Features 2 x HDMI 2.0 and 2 x HDBaseT™ inputs which can be switched to simultaneous HDBaseT™ and HDMI outputs
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
Automatic downscaling of up to 4K 60Hz 4:4:4 video input to 4K 30Hz 4:4:4/4K 60Hz 4:2:0 or 1080p on HDBaseT™
HDBaseT™ input supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0), HDBaseT™ output supports 4K UHD video up to 40m (3840 x 2160 @60Hz 4:4:4) with compatible CSC receiver*
Extends HDMI 1080p up to a distance of 70m from Transmitter to SW41HDBT, and up to 70m from SW41HDBT to Receiver
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports PoC when used with compatible 12V HDBaseT™ transmitters and receivers*
Compatible with all Blustream HDBaseT™ transmitters and receivers*
Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
Web interface module for configuration and control of switch

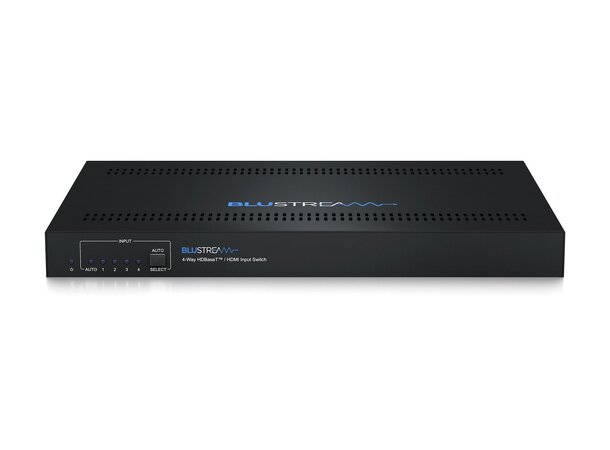

Manual or auto source selection with control via front panel, IR, RS-232 and TCP/IP
Auto source selection supported by compatible Blustream HDBaseT™ transmitters only*
HDCP 2.2 compliant with advanced EDID management

* Technical performance is subject to the features supported on the connected HDBaseT™ transmitter / receiver

Specifications

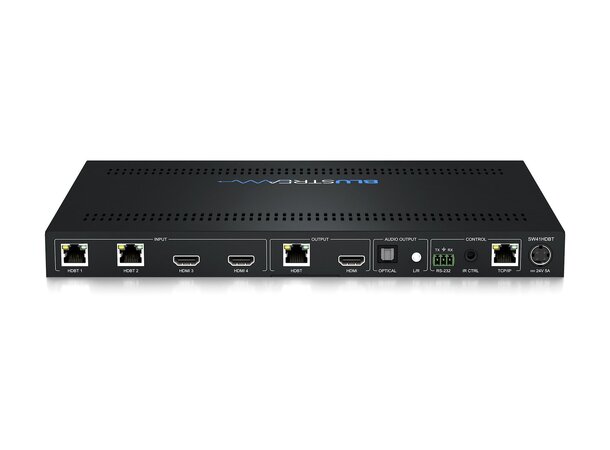

Video Input Connectors: 2 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connector
Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, 19-pin, female
Audio Output Connectors: 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio
RS-232 Serial Port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 1 x RJ45, female
IR Input Ports: 2 x 3.5mm stereo jack
Casing Dimensions (W x H x D): 305mm x 28mm x 220mm
Shipping Weight: 1.5kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature: -4°F to 140°F (-25°C to +70°C)
Power Supply: 24V/5A DC
