Description
Our HEX31WP-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0). The HEX31WP-TX features both manual or automated source selection and includes display on/off control via CEC, RS-232 and IR (via compatible HDBaseT™ Receivers / Matrix). The HEX31WP-TX has been designed to work with all Blustream HDBaseT™ Receiver and Matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

Key Features

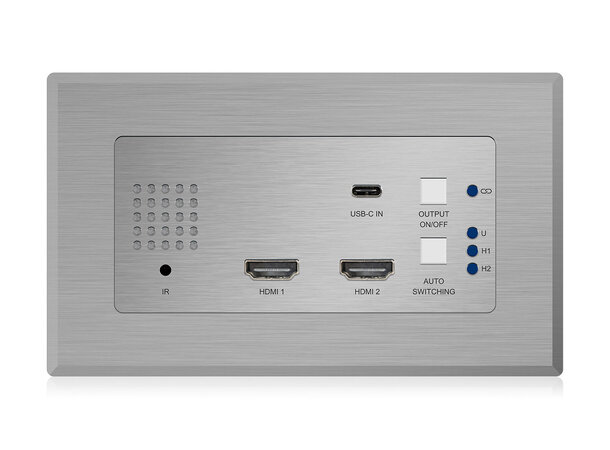

Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Extends HDMI at 1080p up to a distance of 70m

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Input selection via front panel, IR and RS-232

Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ Receiver

Supports 12V-48V PoC from compatible Blustream HDBaseT™ Receiver / Matrix products

Bi-directional RS-232 pass through

Supports IR pass-through to HDBaseT™ device

Compatible with all Blustream HDBaseT™ Receiver / Matrix products *

Magnetic faceplate surround allowing both UK & EU back box compatibility

HDCP 2.2 support

*Technical performance is subject to the features supported on the connected HDBaseT™ device

Box Contents
1 x HEX31WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x RS-232 Control Cable
1 x Quick Reference Guide
