HMXL44CS-KIT
4x4 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR & RS-232, PoH (PoE), Simultaneous HDMI / HDBaseT™ on Output 1, Audio Breakout with Line Level Volume Control, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI, includes 4 x HEX70CS-RX HDBaseT™ Receivers

Description
Our Essential 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The HMXL44CS-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 70m over a single CAT cable.

The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video down conversion on HDBaseT™ output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix. The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX Receivers.

Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

Output 1 features simultaneous HDMI and HDBaseT™ output

Video down-conversion on HDBaseT™ output 1 allows for a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs

Supports 4K 60Hz 4:4:4 UHD video up to 40m

Extends HDMI 1080p video up to 70m

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

HDMI re-clocking on the HEX70CS-RX HDBaseT™ Receivers to help solve HDMI HDCP, compatibility, and handshaking issues

Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio, and DTS:X transmissions

Analogue (L/R) audio input can be embedded onto any combination of HDMI inputs concurrently

Web interface module for control and configuration of the Matrix

Supports bi-directional IR and RS-232 on all HDBaseT™ outputs

Supplied with Blustream IR receivers and emitters

Control via front panel, IR, RS-232 and TCP/IP

Supports PoH (Power over HDBaseT™) to power supplied HDBaseT™ receivers

3rd Party drivers available for all major home control brands

1U Design for 19" rack mount integration - mounting kit included

Advanced EDID management

HDCP 2.2 compliant

Box Contents

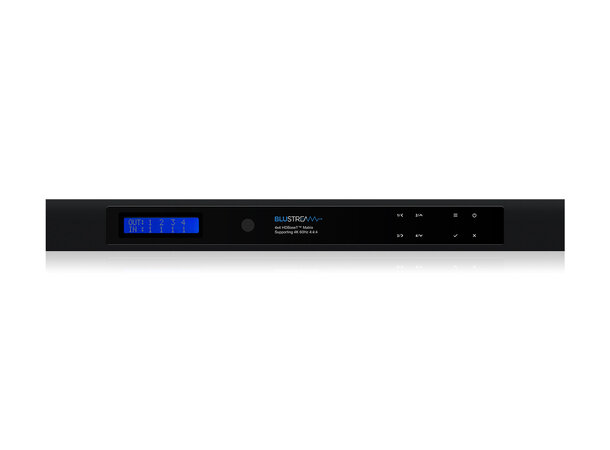

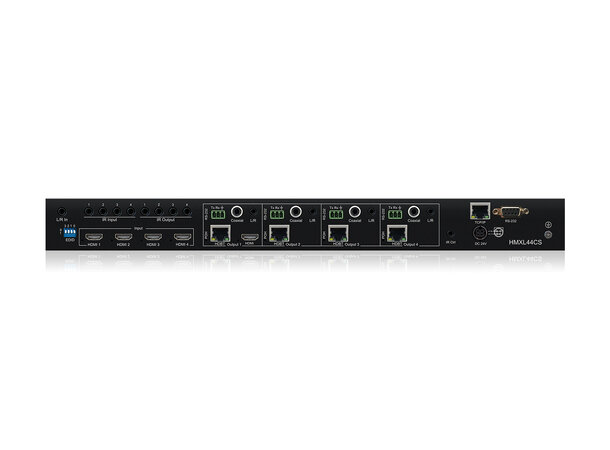

1 x HMXL44CS Matrix

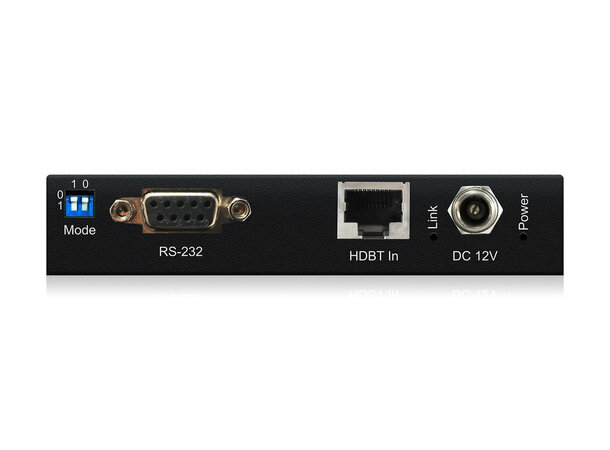

4 x HEX70CS-RX Receivers
1 x Rack Mounting Kit for HMXL44CS
4 x Mounting Kits for HEX70CS-RX
1 x 24V/3.5A Power Supply
1 x IR Remote Control
4 x IRCAB IR Control Cables - 3.5mm-3.5mm Cable
4 x IR Emitters
5 x IRR Receivers
