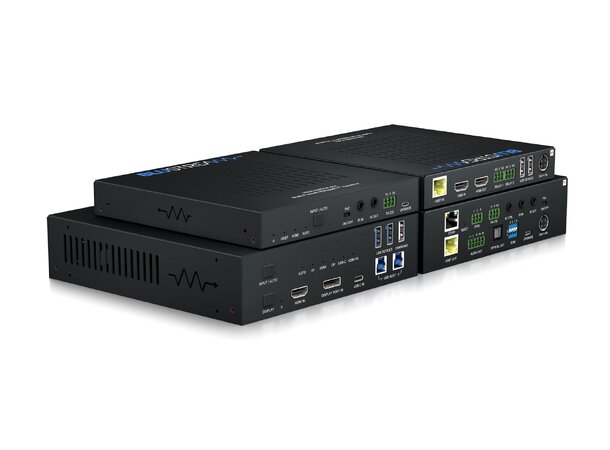

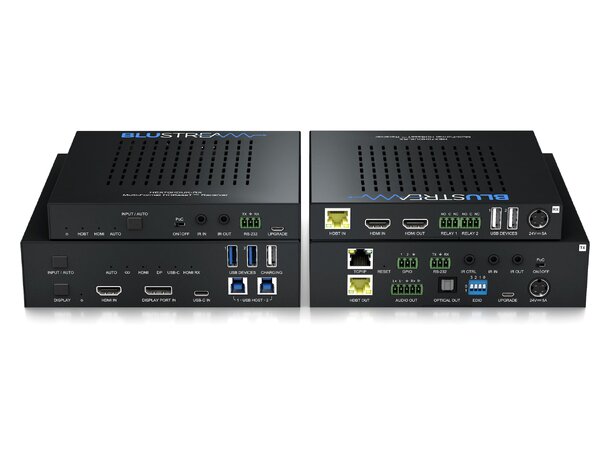

The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable.

The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.

The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR

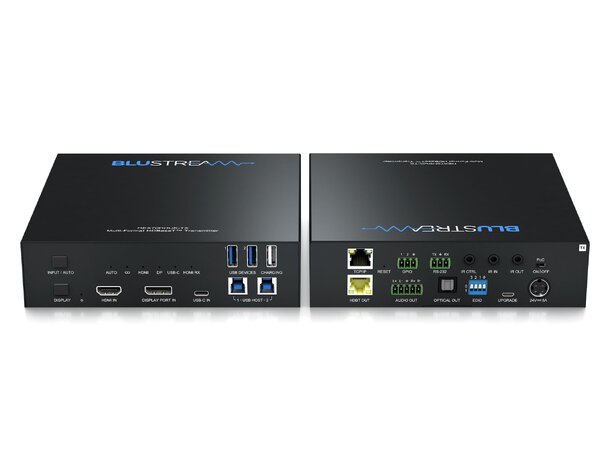

• Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection

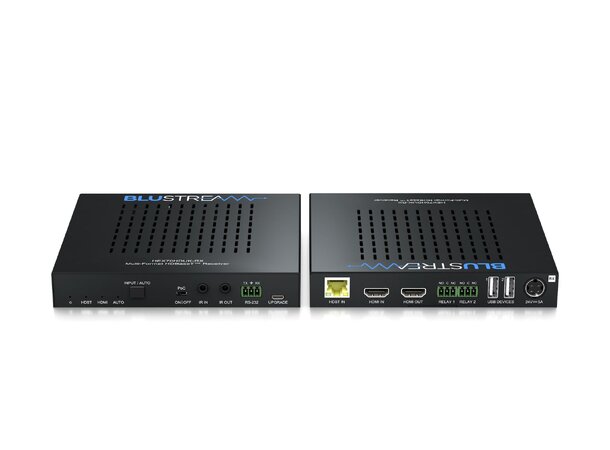

• Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p up to a distance of 70m over single CAT cable
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
• Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
• Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
• USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
• Independent USB Type-A connection to support charging only of devices up to 5V 2A
• Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
• Bi-directional IR pass-through
• Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
• Web interface module for control and configuration of HEX70HDUK-KIT
• Control via front panel, IR, RS-232 and TCP/IP
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• Advanced EDID ad HDCP management

*USB-C video support is limited to 4K 60HZ 4:2:0 when charging feature is activated by the source device
**Analogue audio breakout supports 2ch PCM only
