Description

Our SW21AB-V2 is a 2-Way HDMI switch with integrated audio breakout. The switch supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4.

Box Contents

1 x SW21AU
1 x SW41-REMOTE
1 x 5V/2A DC power supply
1 x IR receiver
1 x User manual

Key Features

• Features 2x HDMI inputs which can be switched to single HDMI output

• Supports full HDMI 2.0 specification 4K UHD video (4K @60Hz 4:4:4)

• HDCP 2.2 compliant

• Supports 3D signal display

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

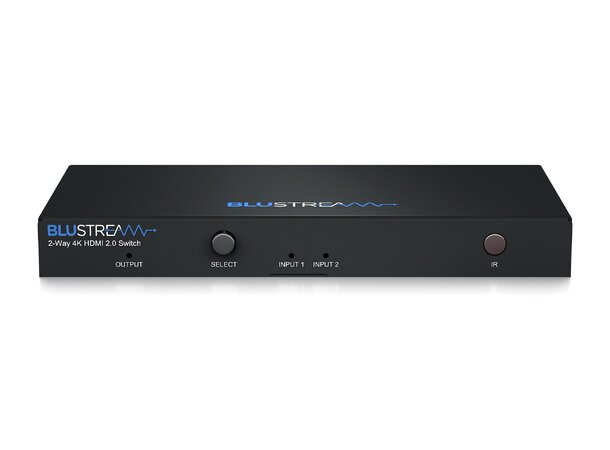

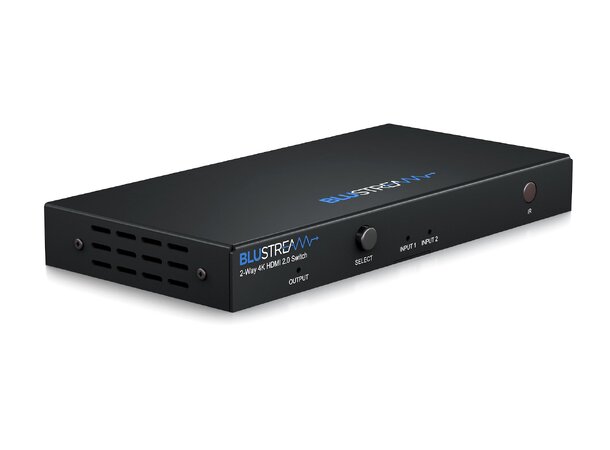

• Control via front panel and IR

• Advanced EDID management

  * Auto switching only available on units with serial no. 70522400001 or above

Specifications

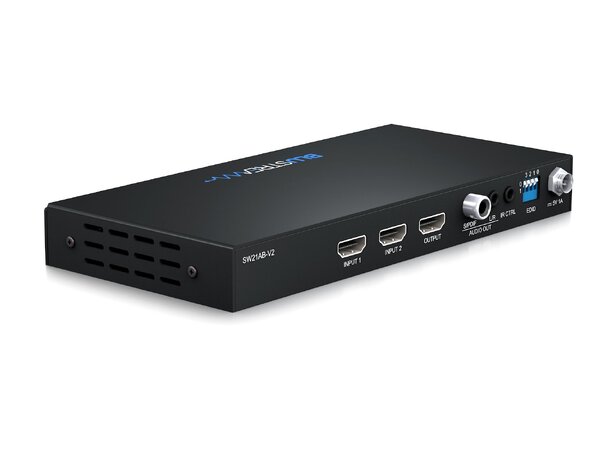

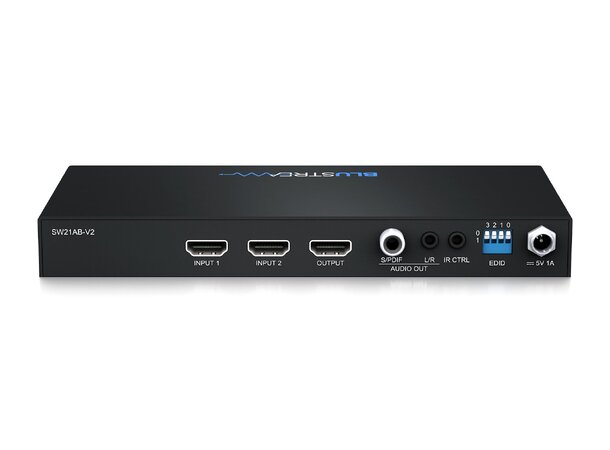

• Video Input Connectors: 2x HDMI Type A

• Video Output Connectors: 1x HDMI Type A

• Audio Output Connectors:1x RCA (SPDIF) & 1x Analogue audio L/R (3.5mm stereo Jack)

• IR Input Ports: 1x 3.5mm stereo Jack

• Casing Dimensions (W x H x D): 196mm x 23mm x 94mm

• Dimensions including connections (W x H x D): 196mm x 32mm x 104mm

• Shipping Weight: 0.8kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature : -4°F to 140°F (-20°C to 60°C)

• Power Supply: 5V/2A DC
