Description

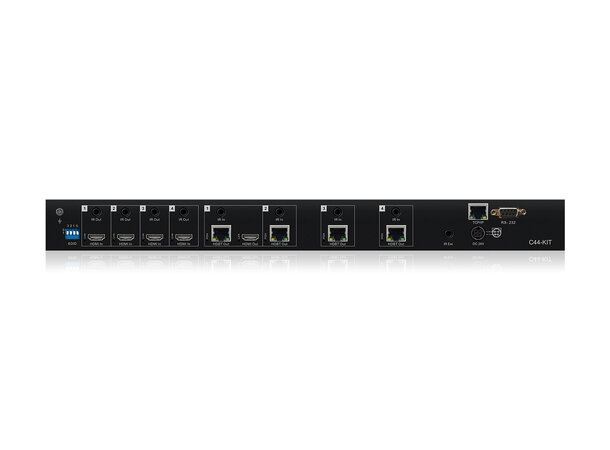

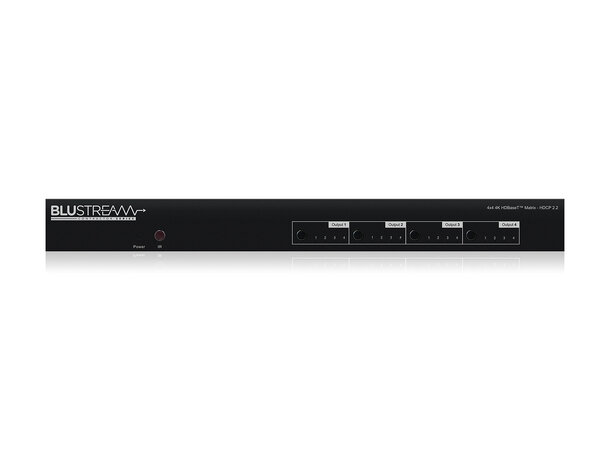

Our Contractor 4x4 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C44-KIT is a 4K HDCP 2.2 Matrix package, delivering  HDMI, Bi-directional IR and PoH (PoE) up to lengths of 70m over a single CAT cable.

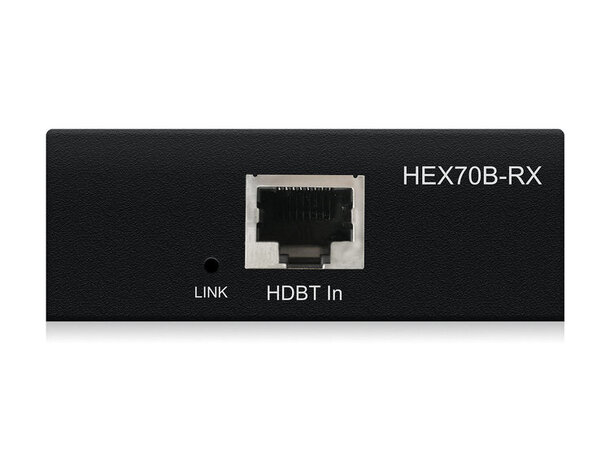

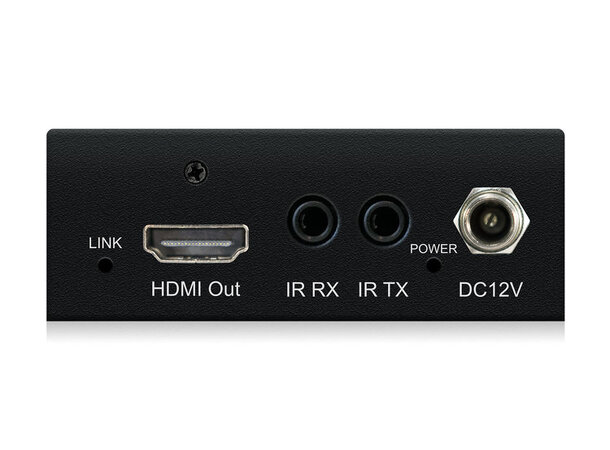

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1 and a web browser interface module for control and configuration of the matrix. The C44-KIT is supplied with 4 x HEX70B-RX Receivers.

Product Video

Key Features

Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency

Features 4 x HDMI inputs which can be independently routed to 4 x HDBaseT™ outputs

Output 1 features simultaneous HDMI and HDBaseT™ output

Extends HDMI up to a distance of 70m over single CAT cable

Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)

Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

Supports 3D signal display

Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission

Web interface module for control and configuration of Matrix

Supports bi-directional IR on all HDBaseT outputs

Supplied with Blustream IR receivers and emitters

Control via front panel, IR, RS-232 and TCP/IP

Supports PoH (Power over HDBaseT™) to supplied HDBaseT™ receivers

3rd Party drivers available for all major home control brands

1U Design for 19" rack mount integration - mounting kit included

Advanced EDID management

HDCP 2.2 compliant

Supplied with 4 x HEX70B-RX receivers
