Our HEX70CS-KIT HDMI 2.0 4K 60Hz 4:4:4 (18Gbps) HDCP 2.2 HDBaseT™ extender set offers market leading features and outstanding value utilising CSC technology with video down conversion.

The product extends HDMI, Bi-directional IR & RS-232 and Bi-directional PoH (PoE) up to lengths of 70m (4K to 40m). The Transmitter includes a HDMI loop-out for integrating local displays or cascading to multiple devices. The Receiver features simultaneous analogue stereo and digital coax audio breakout.

Box Contents

1 x HEX70CS-TX
1 x HEX70CS-RX
2 x Mounting Brackets
1 x 12V/2A Power Supply
1 x IR Emitter
1 x IR Receiver
1 x Quick Reference Guide

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR

• Video down-conversion on HDMI Receiver output allows a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive the native 4K 60Hz 4:4:4 or 4K 60Hz 4:2:0 video content while still showing maximum original 4K UHD resolution on the Transmitter HDMI loop out.

• Supports 4K 60Hz 4:4:4 UHD video up to 40m

• Extends HDMI 1080p video up to 70m

• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions

• HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues

• HDMI audio breakout to analogue L/R audio and coaxial digital outputs concurrently

• Supports bi-directional RS-232 pass through

• Supports bi-directional IR pass through

• Supplied with Blustream 5V IR receiver and emitter

• Advanced EDID management

• HDCP 2.2 compliant

Specifications

         HEX70CS-TX Transmitter:

• Video Input Connectors: 1 x HDMI Type A, female

• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female

• RS-232 serial port: 1 x DB-9 female

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

• EDID DIP switch: 4-pin

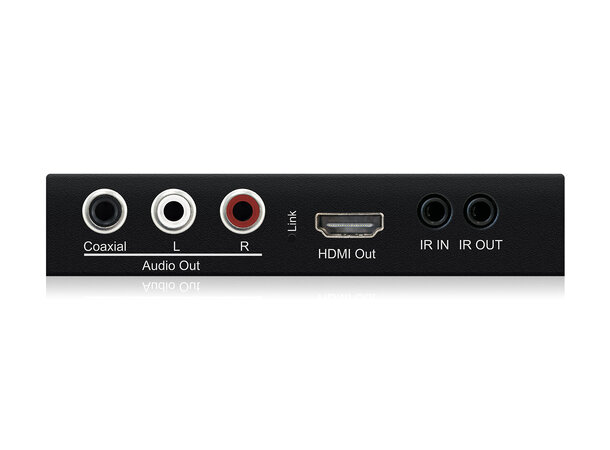

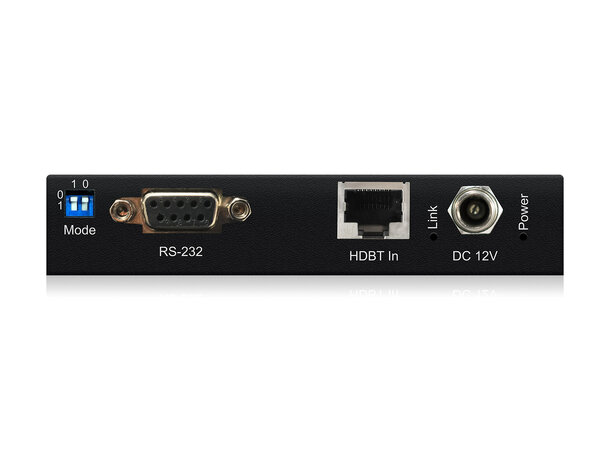

  HEX70CS-RX Receiver:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector

• Video Output Connectors: 1 x HDMI Type A, female

• RS-232 serial port: 1 x DB-9 female

• IR Input ports: 1 x 3.5mm stereo jack

• IR Output ports: 1 x 3.5mm mono jack

• Audio Output Connectors: 1 x RCA (SPDIF) & 2 x Analogue RCA (Left / Right)


• Power Supply: 12V/2A DC, screw type connector

• Power Consumption: 12.7W

• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)

• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)

• Receiver Dimensions (W x D x H): 113 x 124 x 22mm (without connections)

• Receiver Dimensions (W x D x H): 113 x 138 x 22mm (with connections)

• Ind. Extender Weight: 0.35kg (excluding accessories)

• Carton/Box Dimensions (W x D x H):

• Shipping Weight: 1.4kg

• Operating Temperature: 32°F to 104°F (0°C to 40°C)

• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

• Mounting kits included
